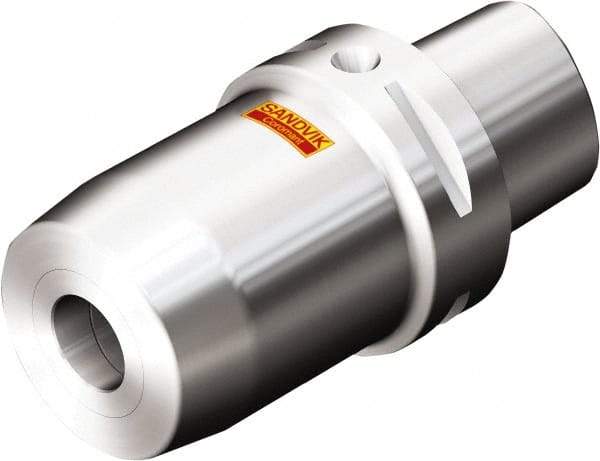

Sandvik Coromant - C6 Modular Connection, 20mm Hole Diam, Hydraulic Tool Holder/Chuck - 50mm Nose Diam, 84mm Projection, 36mm Clamp Depth, 20,000 RPM, Through Coolant
Item #: 92910967
Brand: Sandvik Coromant
Model #: 6255453
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Modular Connection |
| Connection Size | C6 |
| Hole Diameter (Decimal Inch) | 0.7874 |
| Hole Diameter (mm) | 20.00 |
| Nose Diameter (Decimal Inch) | 1.9685 |
| Nose Diameter (mm) | 50.00 |
| Projection (Decimal Inch) | 3.3071 |
| Projection (mm) | 84.00 |
| Through Coolant | Yes |
| Clamping Depth (mm) | 36.00 |
| Clamping Depth (Decimal Inch) | 1.6142 |
| Overall Length (mm) | 122.00 |
| Overall Length (Decimal Inch) | 4.8032 |
| Balanced to (RPM) | 20000 |
