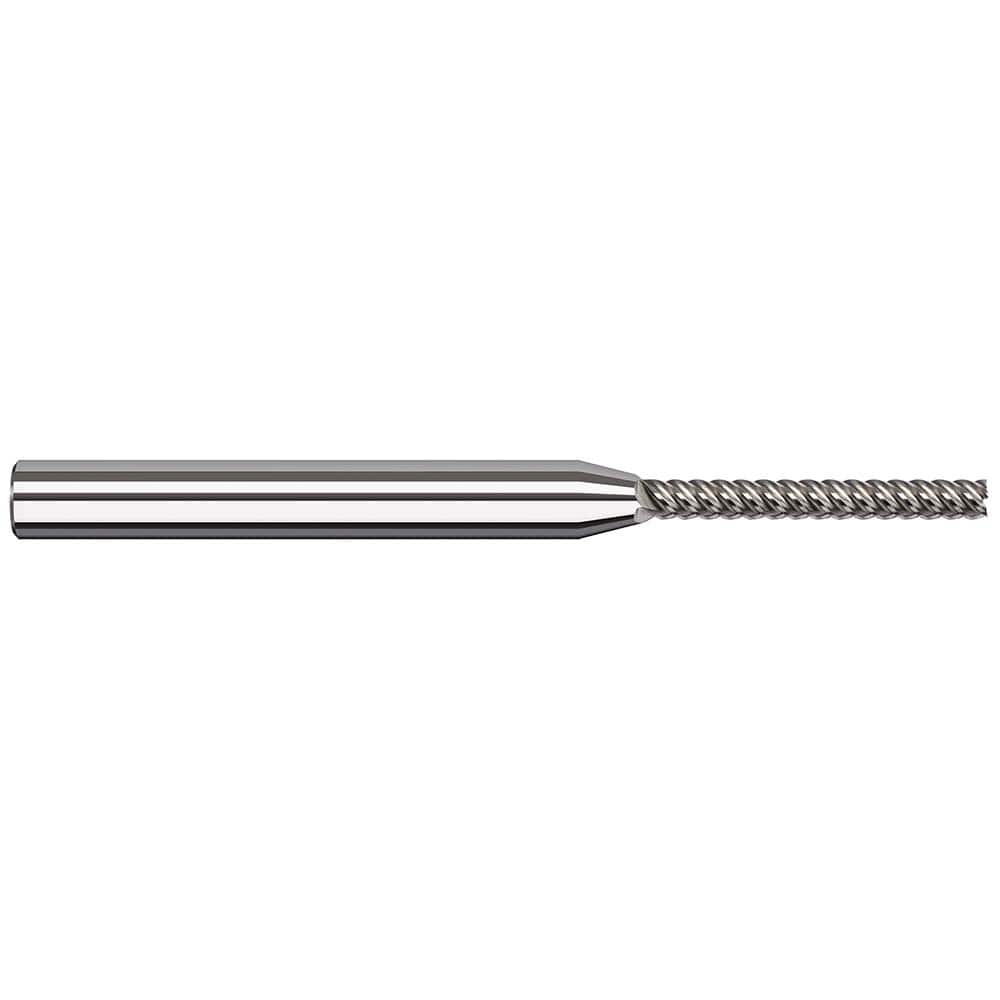

Square End Mill: 5/32'' Dia, 1-1/4'' LOC, 3/16'' Shank Dia, 3'' OAL, 5 Flutes, Solid Carbide Single End, Uncoated, 50 ° Variable Helix, RH Cut, RH Flute
Item #: 92728526
Brand: Harvey Tool
Model #: 67210
Product Specifications
| Mill Diameter (Inch) | 5/32 |
| Mill Diameter (Decimal Inch) | 0.1562 |
| Number Of Flutes | 5 |
| Length of Cut (Inch) | 1-1/4 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 3/16 |
| Finish/Coating | Bright/Uncoated |
| Overall Length (Inch) | 3 |
| Helix Angle | 50 |
| Variable Helix | Yes |
| Extended Reach | No |
| Length Of Cut Range (Decimal Inch) | 1.2500 - 1.5000 |
| Length of Cut (Decimal Inch) | 1.2500 |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Overall Length (Decimal Inch) | 3.0000 |
| Flute Direction | Right Hand |
| Helix Style | Medium |
