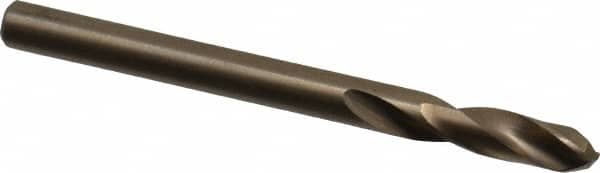

Cleveland - 5.10032mm 135° Spiral Flute Cobalt Screw Machine Drill Bit
Item #: 86190980
Brand: Cleveland
Model #: C14807
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Oxide/Gold provides a polished finish and prevents chip building, galling and welding on a workpiece. It is commonly used in several applications on low carbons, stainless steel and iron based ferrous metals.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.2008 |
| Drill Bit Size (mm) | 5.10 |
| Drill Point Angle | 135 |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | Oxide/Gold |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (mm) | 26.00 |
| Overall Length (mm) | 62.00 |
| Point Type | Split Point |
| Shank Diameter (Decimal Inch) | 0.2008 |
| Specification Designation | ANSI; DIN |
| Spiral Type | Regular Spiral |
| Shank Length (mm) | 36.00 |
| Threaded Shank | No |
| Web Configuration | Parallel |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0000 to -0.0007 |
| Specification Number | DIN 1897 |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | Heavy Duty |
| Material Grade | M42 |
| Series/List | 2133 |
