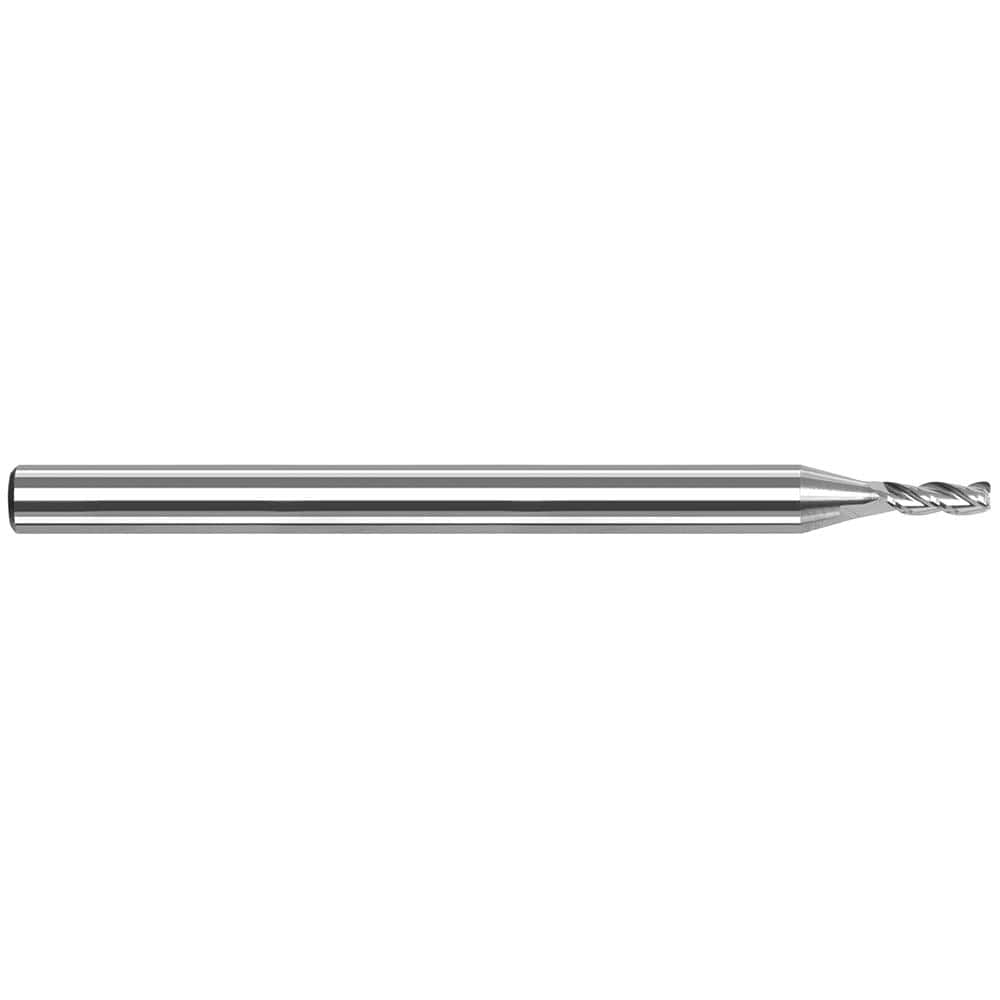

Harvey Tool - Corner Radius & Corner Chamfer End Mills; Mill Diameter (mm): 3.00 ; Mill Diameter (Decimal Inch): 0.1181 ; End Type: Corner Radius ; Corner Radius (mm): 0.10 ; Number of Flutes: 3 ; Material: Solid Carbide
Item #: 92501410
Brand: Harvey Tool
Model #: 973557
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (mm): 3.00 ; Mill Diameter (Decimal Inch): 0.1181 ; End Type: Corner Radius ; Corner Radius (mm): 0.10 ; Number of Flutes: 3 ; Material: Solid Carbide
| Mill Diameter (mm) | 3.00 |
| Mill Diameter (Decimal Inch) | 0.1181 |
| End Type | Corner Radius |
| Corner Radius (mm) | 0.10 |
| Number of Flutes | 3 |
| Material | Solid Carbide |
| Finish/Coating | Uncoated |
| Length of Cut (mm) | 9.0000 |
| Length of Cut (Decimal Inch) | 0.3543 |
| Shank Diameter (mm) | 4.0000 |
| Overall Length (mm) | 50.0000 |
| Flute Type | Helical Flute |
| Cutting Direction | Right Hand |
| Helix Angle | 42 |
| Variable Helix | Yes |
| Single or Double End | Single |
| Centercutting | Center Cutting |
| Flute Direction | Right Hand |
| Series/List | Variable Helix End Mills for Aluminum Alloys - Corner Radius |
