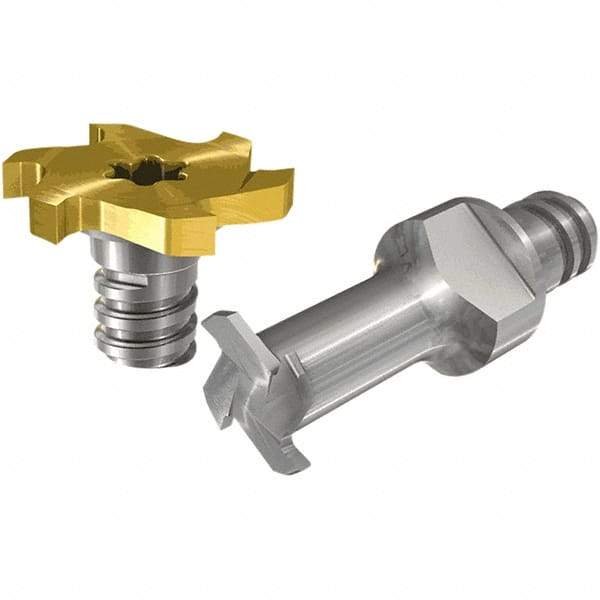

Iscar - MM TS-N Grade IC908 Carbide T-Slot Milling Tip Insert - TiAlN Finish, 4 Flutes, 7.7mm Cutting Diam, 1.19mm Depth of Cut, 14.99mm Extension, 0.008" Cnr Rad
Item #: 92426626
Brand: Iscar
Model #: 5607343
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Milling Tip Style | MM TS-N |
| Milling Tip Type | T-Slot |
| Material | Carbide |
| Cutting Diameter (mm) | 7.70 |
| Cutting Diameter (Decimal Inch) | 0.3030 |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC908 |
| Depth of Cut (mm) | 1.19 |
| Depth of Cut (Decimal Inch) | 0.0470 |
| Number of Flutes | 4 |
| Coating | TiAlN |
| Milling Tip Full Description | T-Slot |
| Corner Radius (Decimal Inch) | 0.0080 |
| Coating Process | PVD |
| Cutting Width (Decimal Inch) | 0.0590 |
| Extension From Holder (mm) | 14.99 |
| Extension From Holder (Decimal Inch) | 0.5900 |
| Thread Size | T05 |
| Lead Angle | 45 |
| Style | MM TS077-N15A-4T05 |
