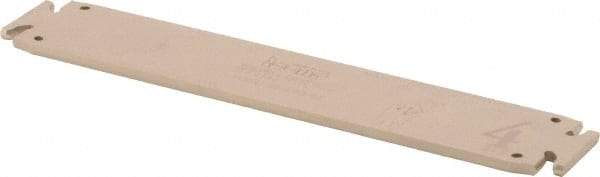

Iscar - 1.38" Blade Height, 0.134" Blade Width, 7.087" OAL, Neutral Cut, Double End Indexable Cut-Off Blade - TGSU Blade, Tang-GripIQ Series
Item #: 92371715
Brand: Iscar
Model #: 2302833
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Double |
| Cutting Direction | Neutral |
| Blade Height (mm) | 35.05 |
| Blade Height (Decimal Inch) | 1.3800 |
| Blade Width (mm) | 3.40 |
| Blade Width (Decimal Inch) | 0.1340 |
| Blade Overall Length (mm) | 180.01 |
| Blade Overall Length (Decimal Inch) | 7.0870 |
| Blade Style | TGSU |
| Insert Style | TAG |
| Insert Width (mm) | 3.71 |
| Insert Width (Decimal Inch) | 0.1460 |
| Series | Tang-GripIQ |
| Insert Seat Size | 3.4 |
| Tool Block/Toolholder Style | TGTBU |
| Insert Holding Method | Self Grip |
| Maximum Workpiece Diameter (Decimal Inch) | 1.2600 |
| Cutting Height (mm) | 33.20 |
| Cutting Height (Decimal Inch) | 1.3070 |
| Minimum Insert Width (mm) | 3.71 |
| Minimum Insert Width (Decimal Inch) | 0.1460 |
| Maximum Insert Width (mm) | 4.50 |
| Maximum Insert Width (Decimal Inch) | 0.1770 |
| Complete Insert Compatibility | TAG L3C-15D; TAG L3C-6D; TAG L3J-15D; TAG L3J-6D; TAG L3JS-6D; TAG N-UT; TAG N3.2JT; TAG N3C; TAG N3CB; TAG N3J; TAG N3JS; TAG N3JT; TAG N3M; TAG N3UT; TAG N3W; TAG R3C-15D; TAG R3C-6D; TAG R3C-8D; TAG R3J-6D; TAG R3JS-6D |
| Complete Tool Block/Toolholder Style Compatibility | TGTBU 19-35; TGTBU 25.4-35; TGTBU 31.8-35; TGTBU 31.8-35 HD; TGTBU 38.1-35; TGTBU 38.1-35 HD; TGTBU 38.1-56 HD |
