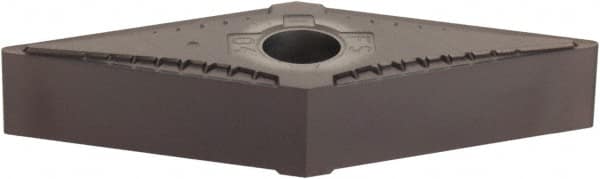

VNGG331FS KCU10 Carbide Turning Insert AlTiN Finish, Neutral, 3/8″ Inscribed Circle, 1/64″ Corner Radius, 35° Diamond
Item #: 92351915
Brand: Kennametal
Model #: 5090817
Product Specifications
| Insert Style | VNGG |
| Insert Shape Code | V |
| Insert Size Code | 331 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | G |
| Insert Material | Solid Carbide |
| Manufacturer Grade | KCU10 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (mm) | 9.53 |
| Insert Holding Method | Pin; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Included Angle | 35.0 |
| Relief Angle | 0 |
| Coating Process | PVD |
| Primary Workpiece Material | P; M |
| Secondary Workpiece Material | S; K; N |
| Chip Breaker | G |
| Coating/Finish | AlTiN |
