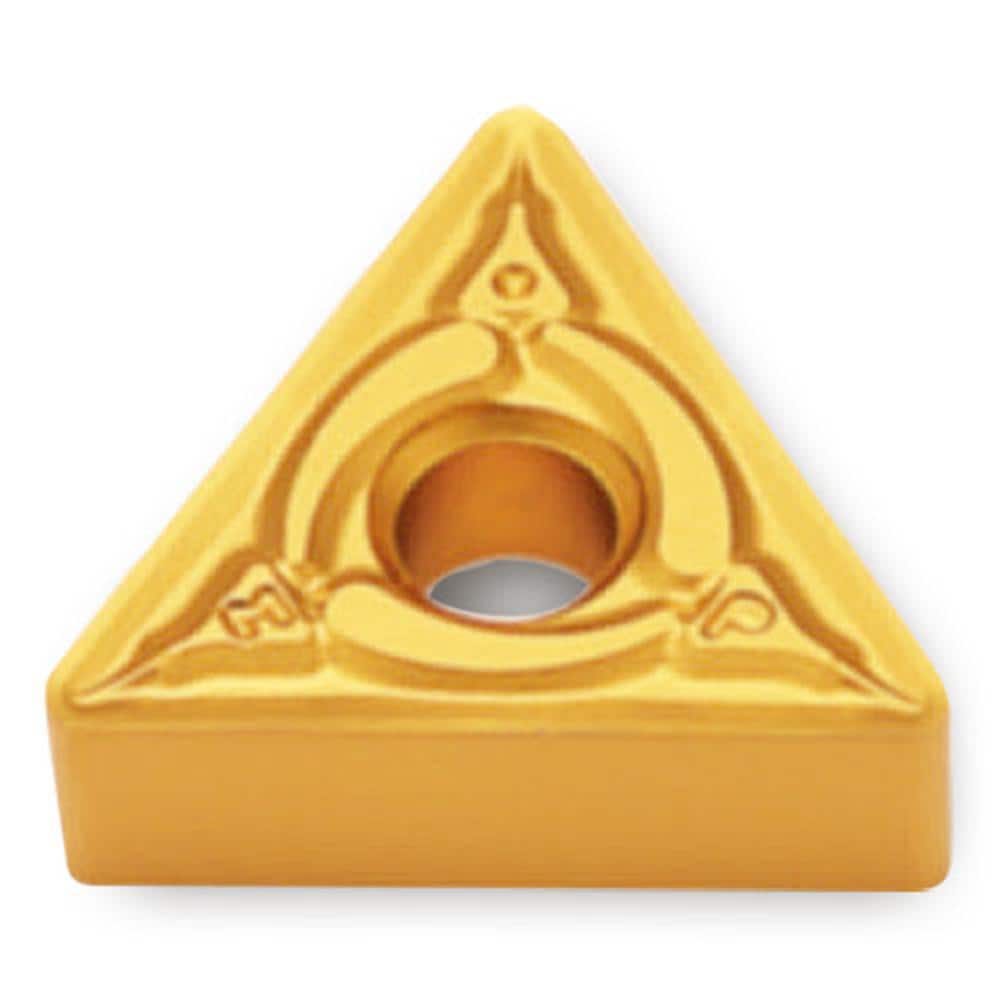

Turning Insert: TNMG331MP TT9225, Solid Carbide TiCN, Al2O3 & TiN Finish, Neutral, 0.6500″ Long, 3/8″ Inscribed Circle, 0.0160″ Corner Radius, 60.0 ° N/A Triangle, Series TNMG
Item #: 92332139
Brand: Ingersoll Cutting Tools
Model #: 5520594
Product Specifications
| Insert Style | TNMG |
| Insert Shape Code | T |
| Insert Size Code | 331 |
| Insert Shape | Triangle |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TT9225 |
| Maximum Depth of Cut (Decimal Inch) | 0.1380 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Included Angle | 60.0 |
| Relief Angle | 0 |
| Series | TNMG |
| Coating Process | CVD |
| Rake | Negative |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.6500 |
| Number Of Cutting Edges | 6 |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium |
| Primary Workpiece Material Code | S; M |
| Ansi Code | TNMG331MPTT9225 |
| Iso Code | TNMG160404MP TT9225 |
| Chip Breaker | MP |
| Width (Decimal Inch - 4 Decimals) | 0.6500 |
| Coating/Finish | TiCN; TiN; Al2O3 |
