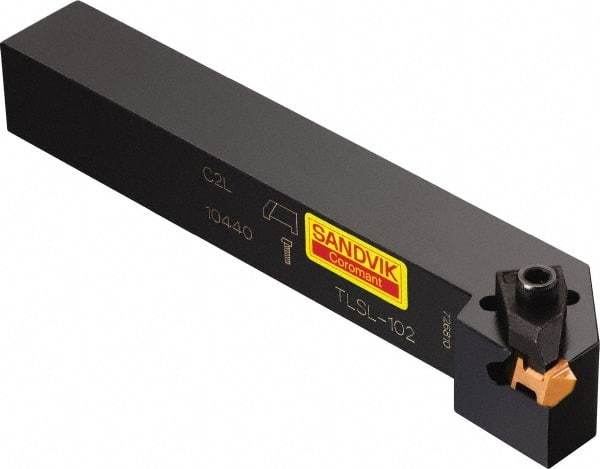

Sandvik Coromant - TLS, Internal or External, Left Hand, 1/8" Max Depth of Cut, Indexable Grooving Tool Holder - TLG-2125L Insert Compatibility, 3/4" Shank Height, 3/4" Shank Width, 4-1/2" OAL
Item #: 92315928
Brand: Sandvik Coromant
Model #: 5753585
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal or External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1250 |
| Overall Length (Inch) | 4-1/2 |
| Overall Length (Decimal Inch) | 4.5000 |
| Toolholder Style | TLS |
| Insert Compatibility | TLG-2125L |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Height (Inch) | 3/4 |
| Shank Width/Diameter (Inch) | 3/4 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Series | Top Lok |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting; Threading |
| Insert Seat Size | 2 |
| Mount Type | 11 |
| Manufacturers Catalog Number | 5753585 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | TLG-2125L |
| Shank Diameter (Decimal Inch) | 0.7500 |
