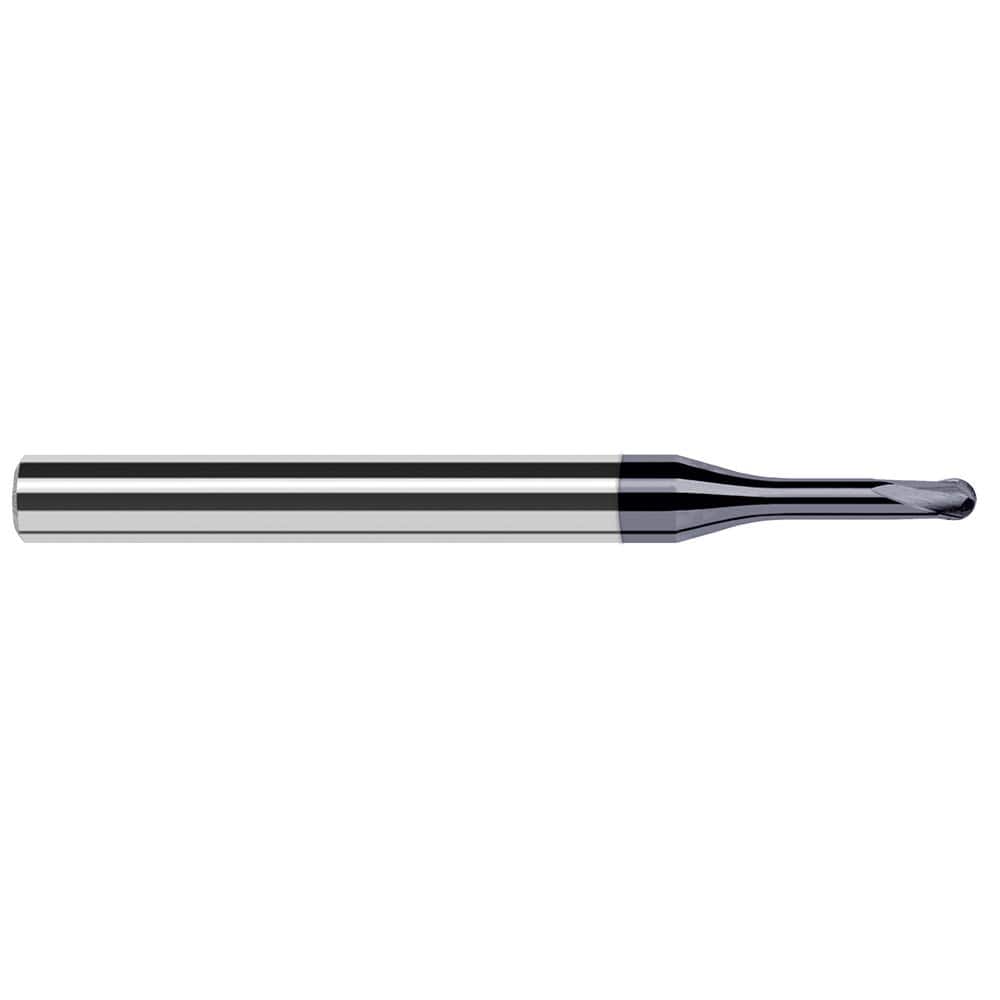

Harvey Tool - Ball End Mills; Mill Diameter (mm): 0.50 ; Mill Diameter (Decimal Inch): 0.0200 ; Number of Flutes: 2 ; Length of Cut (mm): 0.4000 ; Length of Cut (Decimal Inch): 0.0160 ; Material: Solid Carbide
Item #: 92278282
Brand: Harvey Tool
Model #: 31420-C6
Product Specifications
Ball End Mills; Mill Diameter (mm): 0.50 ; Mill Diameter (Decimal Inch): 0.0200 ; Number of Flutes: 2 ; Length of Cut (mm): 0.4000 ; Length of Cut (Decimal Inch): 0.0160 ; Material: Solid Carbide
| Mill Diameter (mm) | 0.50 |
| Mill Diameter (Decimal Inch) | 0.0200 |
| Number of Flutes | 2 |
| Length of Cut (mm) | 0.4000 |
| Length of Cut (Decimal Inch) | 0.0160 |
| Material | Solid Carbide |
| Overall Length (Inch) | 2-1/2 |
| Overall Length (Decimal Inch) | 2.50000 |
| Shank Diameter (Inch) | 1/4 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Finish/Coating | AlTiN Nano |
| Single or Double End | Single |
| Helix Angle | 20 |
| Variable Helix | No |
| Reach Length (Inch) | 1/16 |
| Reach Length (Decimal Inch) | 0.0620 |
| Series/List | End Mills for Hardened Steels - Finishers - Ball |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
