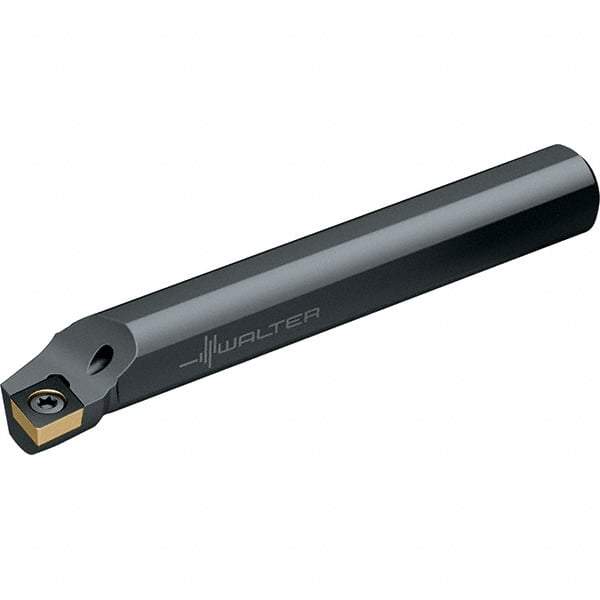

Walter - 37.31mm Min Bore Diam, 304.8mm OAL, 1-1/4" Shank Diam, A-SCLC Indexable Boring Bar - CC.. 1204.., CC.. 43.. Insert, Screw Holding Method
Item #: 92251727
Brand: Walter
Model #: 5364720
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-SCLC |
| Series | Walter Turn |
| Minimum Bore Diameter (mm) | 37.31 |
| Minimum Bore Diameter (Decimal Inch) | 1.4690 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 304.80 |
| Overall Length (Decimal Inch) | 12.0000 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Compatibility | CC.. 1204..; CC.. 43.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Center to Cutting Edge (mm) | 19.43 |
| Center to Cutting Edge (Decimal Inch) | 0.7650 |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (mm) | 12.70 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Complete Insert Compatibility | CCGT 120402-PM2; CCGT 120404-PF2; CCGT 120404-PM2; CCGT 120408-PF2; CCGT 120408-PM2; CCGT 431-PF2; CCGT 431-PM2; CCGT 432-PF2; CCGT 432-PM2; CCMT 120404-PF4; CCMT 120404-PM; CCMT 120404-PM5; CCMT 120404-PS5; CCMT 120408-PF4; CCMT 120408-PM; CCMT 120408-PM |
| Toolholder Material | Steel |
