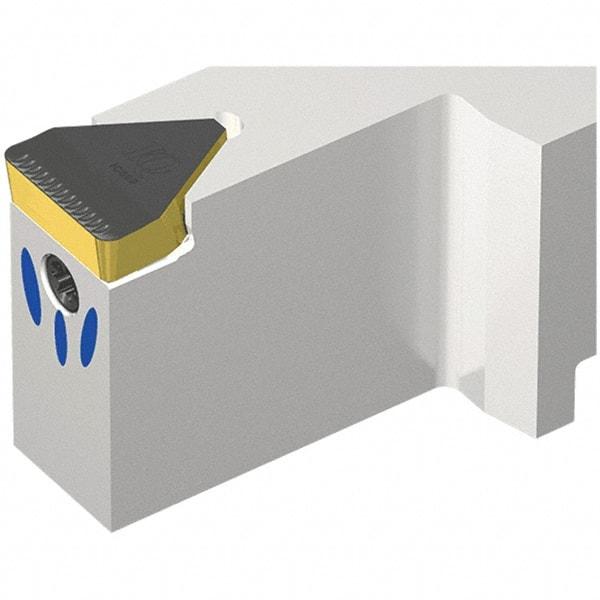

Iscar - THD, External, Right Hand, 0.787" Max Depth of Cut, 0.394" Max Groove Width, Indexable Grooving Tool Holder - TIGER 1008Y-IQ Insert Compatibility, 1" Shank Height, 1" Shank Width, 7" OAL, Through Coolant
Item #: 92245679
Brand: Iscar
Model #: 2802044
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.7870 |
| Maximum Groove Width (Decimal Inch) | 0.3940 |
| Overall Length (Decimal Inch) | 7.0000 |
| Toolholder Style | THD |
| Insert Compatibility | TIGER 1008Y-IQ |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Series | DoveIQGrip |
| Through Coolant | Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.8200 |
| Head Height (Decimal Inch) | 1.3200 |
| Head Length (Decimal Inch) | 1.1800 |
| Shank Length (Decimal Inch) | 5.8200 |
| Complete Insert Compatibility | TIGER 1008Y-IQ |
