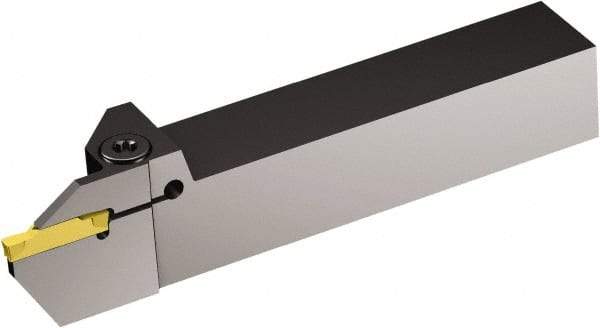

Sandvik Coromant - R/LF123..B, Internal or External, Left Hand, 10.16mm Max Depth of Cut, Indexable Grooving Tool Holder - N123F2-0250-0002-CM Insert Compatibility, 15.88mm Shank Height, 15.88mm Shank Width, 114.3mm OAL
Item #: 92173079
Brand: Sandvik Coromant
Model #: 5732606
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal or External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.4000 |
| Maximum Depth of Cut (mm) | 10.16 |
| Overall Length (mm) | 114.30 |
| Overall Length (Decimal Inch) | 4.5000 |
| Toolholder Style | R/LF123..B |
| Insert Compatibility | N123F2-0250-0002-CM |
| Shank Height (mm) | 15.88 |
| Shank Height (Decimal Inch) | 0.6250 |
| Shank Width/Diameter (mm) | 15.88 |
| Shank Width/Diameter (Decimal Inch) | 0.6250 |
| Series | CoroCut 1-2 |
| Through Coolant | NonThrough Coolant |
| Insert Seat Size | F |
| Maximum Hole Depth (Decimal Inch) | 1.1420 |
| Maximum Bore Depth (Decimal Inch) | 1.1420 |
| igrvh Maximum Bore Depth (mm) | 29.01 |
| Back of Bar to Cutting Edge (mm) | 114.30 |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.5000 |
| Center to Cutting Edge (mm) | 16.99 |
| Center to Cutting Edge (Decimal Inch) | 0.6690 |
| Head Length (mm) | 29.01 |
| Head Length (Decimal Inch) | 1.1420 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N123F2-0250-0002-CM |
