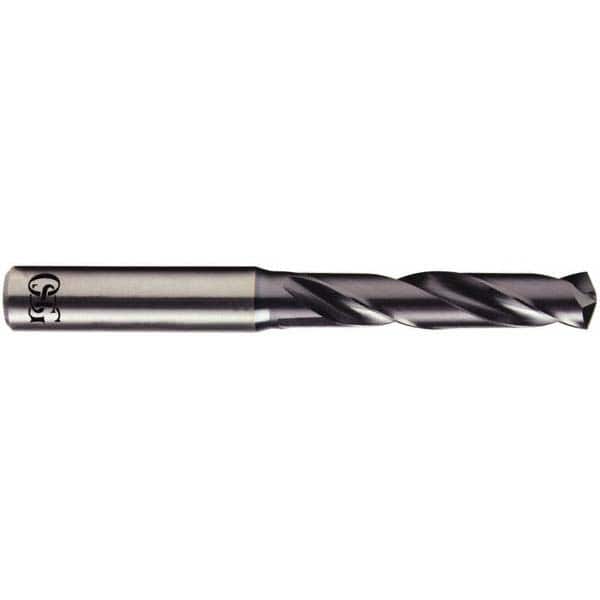

Screw Machine Length Drill Bit: 0.2717″ Dia, 140 °, Solid Carbide WD1 Finish, Series HP243
Item #: 92167048
Brand: OSG
Model #: HP243-2717
Product Specifications
| Drill Bit Size (mm) | 6.90 |
| Tool Material | Solid Carbide |
| Coating/Finish | WD1 |
| Drill Point Angle | 140 |
| Coolant Through | No |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Drill Bit Size (Decimal Inch) | 0.2717 |
| Overall Length (mm) | 79.00 |
| Overall Length (Decimal Inch) | 3.1102 |
| Shank Diameter (mm) | 8.00 |
| Series | HP243 |
| Web Thinning | R-Thinned |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | +0.0060 to +0.0210 mm |
| Flute Length (mm) | 34.00 |
| Drill Bit Size Range (Decimal Inch) | 0.2500 to 0.3000 |
| Drill Bit Size Range (mm) | 6.50 to 8.00 |
