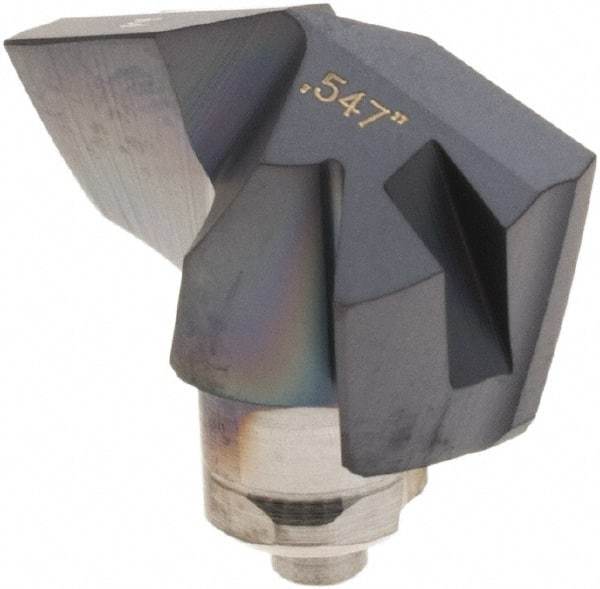

Iscar - Series ICM, 13.89mm Diam Grade IC908 140° Replaceable Drill Tip - Carbide, TiAlN Finish, 13 Seat Size
Item #: 92062165
Brand: Iscar
Model #: 5508413
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Diameter (mm) | 13.89 |
| Diameter (Decimal Inch) | 0.5470 |
| Included Angle | 140 |
| Material | Carbide |
| Material Grade | Submicron |
| Manufacturer's Grade | IC908 |
| Series | ICM |
| Coating | TiAlN |
| Insert Seat Size | 13 |
| Through Coolant | NonThrough Coolant |
| Coating Process | PVD |
| Height (mm) | 7.59 |
| Height (Decimal Inch) | 0.2990 |
