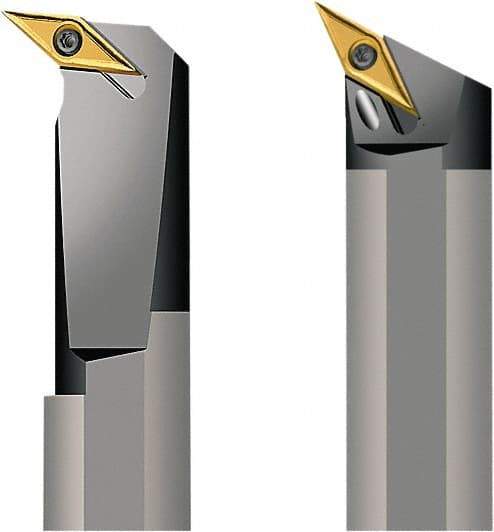

Seco - 40mm Min Bore Diam, 250mm OAL, 32mm Shank Diam, A-PVPN Indexable Boring Bar - 35mm Max Bore Depth, VNMU 1304.. Insert, Pin Holding Method
Item #: 92048339
Brand: Seco
Model #: 89737
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-PVPN |
| Series | Pin Lock |
| Minimum Bore Diameter (mm) | 40.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.5748 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 35.00 |
| Maximum Bore Depth (Decimal Inch) | 1.3780 |
| Overall Length (mm) | 250.00 |
| Overall Length (Decimal Inch) | 9.8425 |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Insert Compatibility | VNMU 1304.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Pin |
| Rake | Negative |
| Lead Angle | 117.5 |
| Center to Cutting Edge (mm) | 22.00 |
| Center to Cutting Edge (Decimal Inch) | 0.8661 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Insert Inscribed Circle (mm) | 7.94 |
| Insert Inscribed Circle (Decimal Inch) | 0.3126 |
| Rake Angle | -5 |
| Complete Insert Compatibility | VNMU 130404-M3; VNMU 130408-M3 |
| Toolholder Material | Steel |
