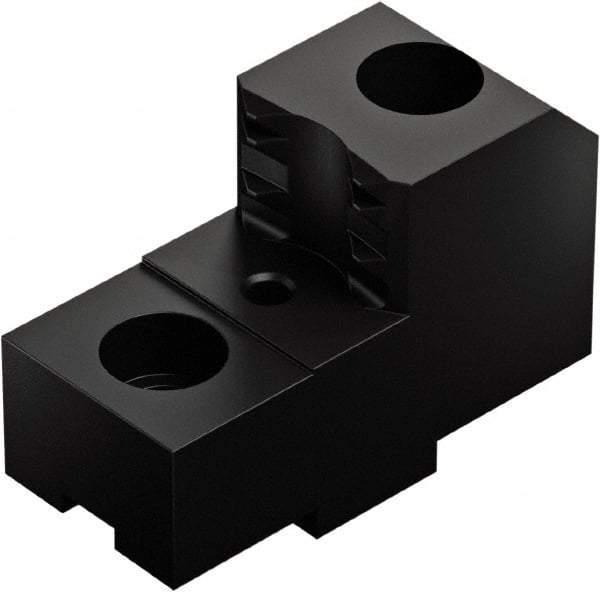

Schunk - 12" Max Chuck Diam Compatibility, Case Hardened Steel Tongue & Groove Hard Lathe Top Jaws - 0 Steps, 20mm Groove Width
Item #: 92047950
Brand: Schunk
Model #: 139160
Exact Tooling IR#: 04
Features and Benefits
Top jaws, also known as hard or step jaws, hold a workpiece during an operation. They are reversible and are bolted onto the master jaw.
| Product Specifications | |
|---|---|
| Jaw Type | Top Jaws |
| Jaw Interface Type | Tongue & Groove |
| Maximum Compatible Chuck Diameter (mm) | 315.00 |
| Maximum Compatible Chuck Diameter (Inch) | 12 |
| Maximum Compatible Chuck Diameter (Decimal Inch) | 12.00 |
| Number of Steps | 0 |
| Material | Case Hardened Steel |
| Groove Width (mm) | 20.00 |
| Groove Width (Decimal Inch) | 0.7874 |
| Number of Jaws | 3 |
| Fastener Size (mm) | M12 |
| Distance Between Mount Hole Centers (mm) | 40.00 |
| Distance Between Mount Hole Centers (Decimal Inch) | 1.5748 |
