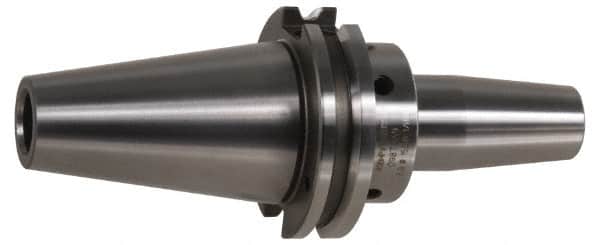

Kennametal - 5/8" Hole Diam, CAT40 Taper Shank Shrink Fit Tool Holder & Adapter - 152.4mm Projection, 26.92mm Nose Diam, 1.54" Clamping Depth, 15,000 RPM, Through Coolant
Item #: 91982694
Brand: Kennametal
Model #: 3615179
Exact Tooling IR#: 04
Features and Benefits
Taper shanks are held in the machine spindle or in a toolholder clamping system.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | CAT40 |
| Hole Diameter (Decimal Inch) | 0.6250 |
| Hole Diameter (mm) | 15.88 |
| Hole Diameter (Inch) | 5/8 |
| Projection (mm) | 152.40 |
| Projection (Decimal Inch) | 6.0000 |
| Nose Diameter (mm) | 26.92 |
| Nose Diameter (Decimal Inch) | 1.0600 |
| Through Coolant | Through Coolant |
| Clamping Depth (Decimal Inch) | 1.5400 |
| Overall Length (mm) | 220.65 |
| Overall Length (Decimal Inch) | 8.6870 |
| Balanced to (RPM) | 15000 |
