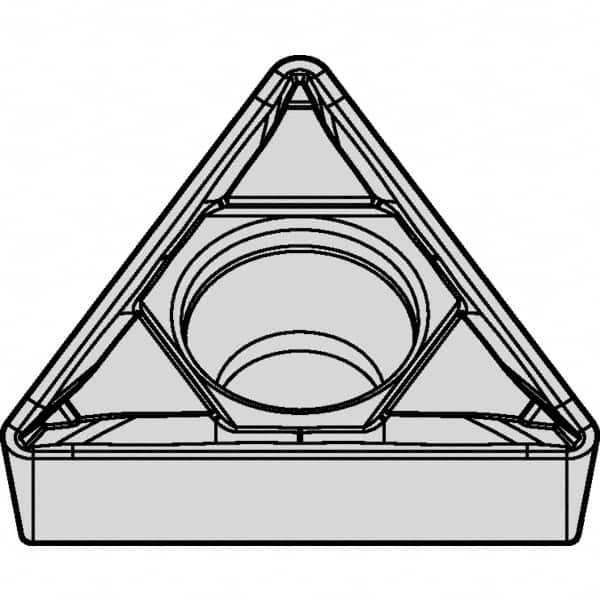

Kennametal - TCMT21.50.5 FP Grade KTP10 Cermet Turning Insert - TiN/TiCN/TiN Finish, 60° Triangle, 1/4" Inscr Circle, 3/32" Thick, 0.0079" Corner Radius
Item #: 91975714
Brand: Kennametal
Model #: 3769071
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | TCMT |
| Insert Size | 21.50.5 |
| Material | Cermet |
| Length (mm) | 11.00 |
| Length (Decimal Inch) | 0.4331 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Manufacturer's Grade | KTP10 |
| Coating | TiN/TiCN/TiN |
| Material Grade | C3/C7 |
| Chip Breaker | FP |
| Hole Diameter (mm) | 2.90 |
| Hole Diameter (Decimal Inch) | 0.1142 |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | PVD |
| Included Angle | 60 |
| Series | Screw-On |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| Insert Holding Method | Screw |
| Shape | Triangle |
