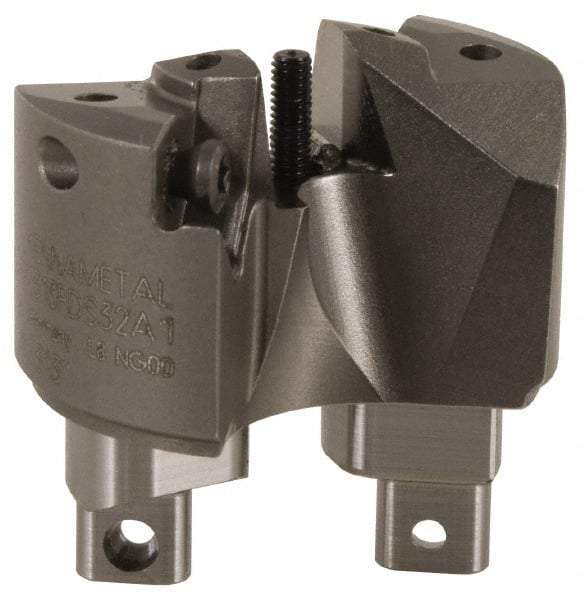

Kennametal - Series KSEM Plus, Head Connection FDS56, 57mm Max Diam Pilot Insert Drill Head - 21mm Pilot Drill Diam, 2 Nonpilot Inserts, 30mm Head Length
Item #: 91969394
Brand: Kennametal
Model #: 3794414
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KSEM Plus |
| Head Connection Size | FDS56 |
| Pilot Type | Pilot Insert |
| Maximum Drill Diameter (mm) | 57.00 |
| Maximum Drill Diameter (Decimal Inch) | 2.2441 |
| Pilot Drill Diameter (mm) | 21.00 |
| Pilot Drill Diameter (Decimal Inch) | 0.8268 |
| Number of Non-Pilot Inserts | 2 |
| Head Length (mm) | 30.00 |
| Head Length (Decimal Inch) | 1.1811 |
| Through Coolant | Through Coolant |
| Insert Holding Method | Screw |
| Head Length to Pilot Tip (Decimal Inch) | 1.3583 |
| Head Length to Pilot Tip (mm) | 34.50 |
| Includes | Insert screw; Wrench |
