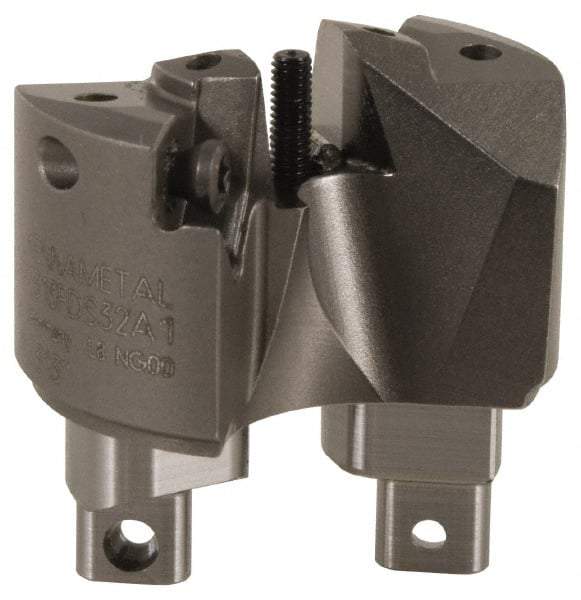

Kennametal - Series KSEM Plus, Head Connection FDS45, 46mm Max Diam Pilot Insert Drill Head - 19mm Pilot Drill Diam, 2 Nonpilot Inserts, 25mm Head Length
Item #: 91969295
Brand: Kennametal
Model #: 3794404
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KSEM Plus |
| Head Connection Size | FDS45 |
| Pilot Type | Pilot Insert |
| Maximum Drill Diameter (mm) | 46.00 |
| Maximum Drill Diameter (Decimal Inch) | 1.8110 |
| Pilot Drill Diameter (mm) | 19.00 |
| Pilot Drill Diameter (Decimal Inch) | 0.7480 |
| Number of Non-Pilot Inserts | 2 |
| Head Length (mm) | 25.00 |
| Head Length (Decimal Inch) | 0.9843 |
| Through Coolant | Through Coolant |
| Insert Holding Method | Screw |
| Head Length to Pilot Tip (Decimal Inch) | 1.1378 |
| Head Length to Pilot Tip (mm) | 28.90 |
| Includes | Insert screw; Wrench |
