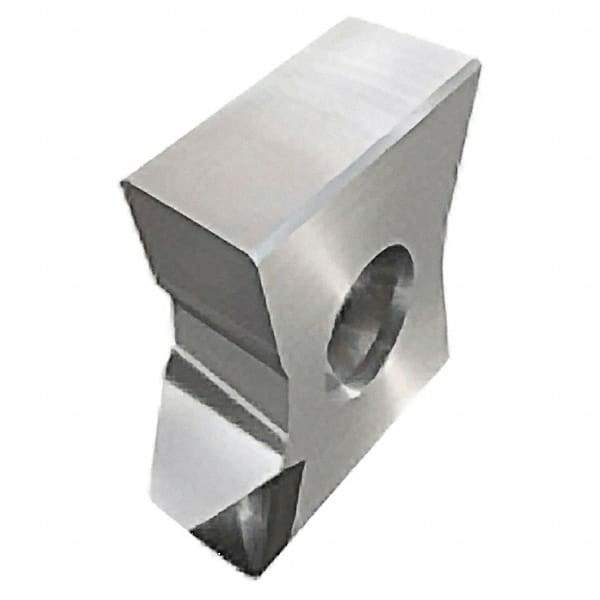

Iscar - LNAW1506 S Grade IB85 PCBN Milling Insert - Uncoated, 0.5472" Thick, 0.8mm Corner Radius
Item #: 91891374
Brand: Iscar
Model #: 5605203
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | LNAW |
| Insert Size | 1506 |
| Material | PCBN |
| Manufacturer's Grade | IB85 |
| Coating | Uncoated |
| Width (Decimal Inch) | 0.2362 |
| Length (Decimal Inch) | 0.5906 |
| Thickness (Decimal Inch) | 0.5472 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Relief Angle | 0.000 |
| Included Angle | 90 |
| Shape | Rectangle |
| Insert Hand | Right Hand |
| Chipbreaker | S |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| ISO Number | LNAW 1506PNT-R-S |
