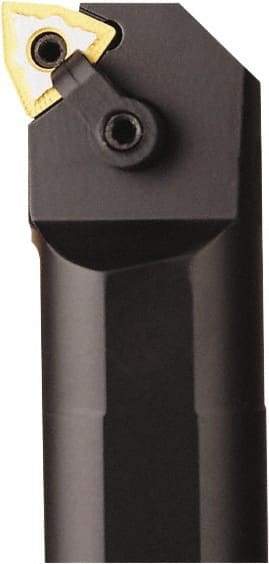

Seco - 2.56" Min Bore Diam, 16" OAL, 2" Shank Diam, A-MVUN Indexable Boring Bar - WNMG 432 Insert, Pin & Clamp Holding Method
Item #: 91802116
Brand: Seco
Model #: 14793
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-MVUN |
| Series | Multi-Option |
| Minimum Bore Diameter (Decimal Inch) | 2.5600 |
| Hand of Holder | Left Hand |
| Overall Length (Decimal Inch) | 16.0000 |
| Shank Diameter (Decimal Inch) | 2.0000 |
| Insert Compatibility | WNMG 432 |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Pin & Clamp |
| Rake | Negative |
| Lead Angle | 95 |
| Center to Cutting Edge (Decimal Inch) | 1.2810 |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Rake Angle | -5 |
| Complete Insert Compatibility | WNMG 432-M3; WNMG 432-M3(O); WNMG 432-M4; WNMG 432-M5; WNMG 432-MF3-203; WNMG 432-MF4; WNMG 432-MF5; WNMG 432-MR4; WNMG 432-MR4-203; WNMG 432-MR6; WNMG 432-MR7; WNMG 432W-M3 |
| Toolholder Material | Steel |
