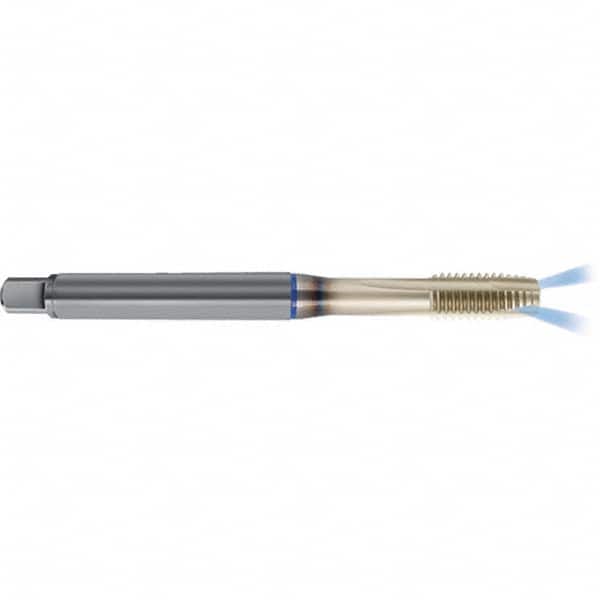

Guhring - Spiral Point Taps Thread Size (mm): M10x1.50 Number of Flutes: 3
Item #: 12269007
Brand: Guhring
Model #: 9046480100000
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
Powdered metal high speed steel is durable and wear resistant material used in general purpose applications. It is commonly used on low-carbon alloys and mild steels.
Product Specifications
Spiral Point Taps; Thread Size (mm): M10x1.50 ; Number of Flutes: 3 ; Chamfer: Plug ; Class of Fit: 6HX ; Thread Limit: D7/D8 ; Finish/Coating: Sirius
| Thread Size (mm) | M10x1.50 |
| Number of Flutes | 3 |
| Chamfer | Plug |
| Class of Fit | 6HX |
| Thread Limit | D7/D8 |
| Finish/Coating | Sirius |
| Material | Powdered Metal High Speed Steel |
| Through Coolant | Through Coolant |
| Thread Direction | Right Hand |
| Overall Length (mm) | 100.00 |
| Oversize | No |
| Thread Standard | Metric |
| Series/List | 4648 |
| Tapping Depth (mm) | 39.00 |
| Shank Diameter (mm) | 10.00 |
| Square Size (mm) | 8.00 |
