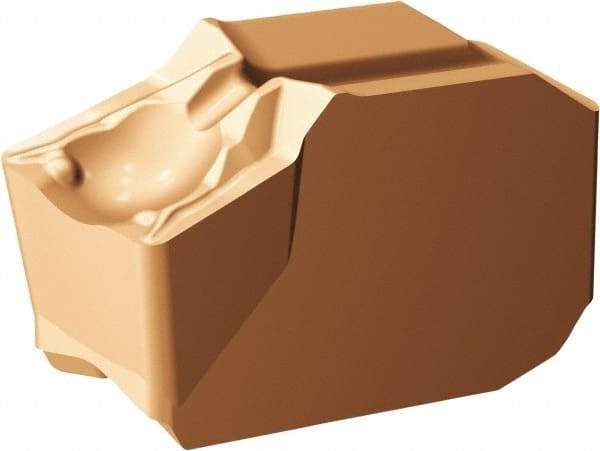

Sandvik Coromant - QDNJ050000 TF Grade 1125 Carbide Turning Insert - TiCrAlN/TiAlN Finish, Irregular, 5.9mm Inscr Circle, 5mm Thick, 0mm Corner Radius
Item #: 91498436
Brand: Sandvik Coromant
Model #: 6427445
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Product Specifications | |
---|---|
Insert Style | QDNJ |
Insert Size | 050000 |
Material | Carbide |
Inscribed Circle (mm) | 5.90 |
Inscribed Circle (Decimal Inch) | 0.2323 |
Thickness (Decimal Inch) | 0.1969 |
Thickness (mm) | 5.00 |
Corner Radius (mm) | 0.00 |
Corner Radius (Decimal Inch) | 0.0000 |
Manufacturer's Grade | 1125 |
Coating | TiCrAlN/TiAlN |
Chip Breaker | TF |
Insert Length (Decimal Inch) | 0.5512 |
Insert Length (mm) | 14 |
ISO Number | QDNJ05000004TF1125 |
Relief Angle | 7 |
Coating Process | PVD |
Manufacturers Catalog Number | 6427445 |
Primary Workpiece Material | K; M; P; S |
Secondary Workpiece Material | K; M; P; S |
Cutting Direction | Neutral |
Insert Hand | Neutral |
Series | CoroCut QD |
Maximum Depth of Cut (mm) | 3.50 |
Maximum Depth of Cut (Decimal Inch) | 0.1378 |
Cutting Edge Style | Negative Land/ER Treated |
Cutting Width (mm) | 5.00 |
Multi Use Application | Turning |
MultiUseTool | Yes |
Shape | Irregular |
