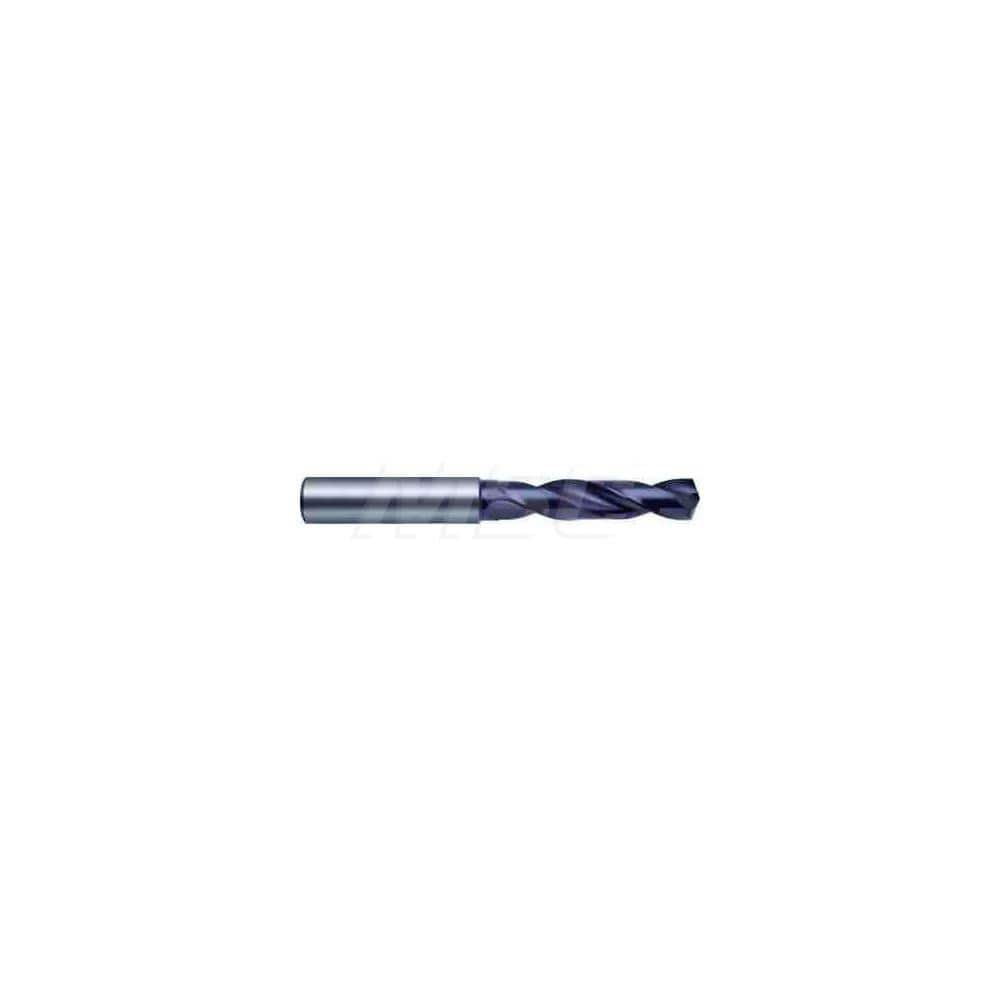

Screw Machine Length Drill Bit: 0.7656″ Dia, 140 °, Solid Carbide Coated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 5514
Item #: 91385203
Brand: Guhring
Model #: 9055140194460
Product Specifications
| Drill Bit Size (Inch) | 49/64 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 140 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | SU |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Drill Bit Size (Decimal Inch) | 0.7656 |
| Overall Length (mm) | 131.00 |
| Overall Length (Decimal Inch) | 5.1575 |
| Shank Diameter (mm) | 20.00 |
| Series | 5514 |
| Web Thinning | Web-Thinned |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (Decimal Inch) | 1.9620 |
| Maximum Drilling Depth (mm) | 49.83 |
| Shank Length (Decimal Inch) | 2.0472 |
| Shank Length (mm) | 52.00 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | High Performance |
| Drill Bit Diameter Tolerance | m7 |
| Standards | DIN 6537 K |
| Flute Length (mm) | 79.00 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.6000+ |
| Specification Designation | DIN |
| Material Grade | K40 |
