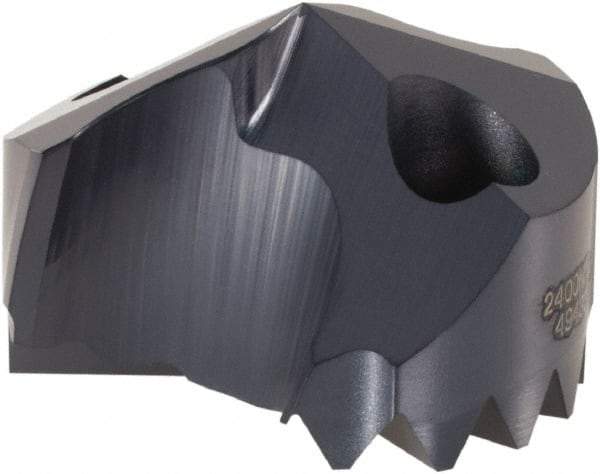

Sumitomo - Series SMD, 0.9449" Diam Grade ACX70 140° Replaceable Drill Tip - Carbide, DEX Finish, Through Coolant
Item #: 91371161
Brand: Sumitomo
Model #: 5KHY209
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
DEX is a super multi-layered coating made from alternate layers of multilayered substrates including TiAlCr and TiSi. This nano-coating technology provides more than double the tool life of conventional coatings. It offers improved chip, wear, heat and adhesion resistance. Proprietary to Sumitomo.
| Product Specifications | |
|---|---|
| Diameter (Decimal Inch) | 0.9449 |
| Included Angle | 140 |
| Material | Carbide |
| Manufacturer's Grade | ACX70 |
| Series | SMD |
| Coating | DEX |
| Through Coolant | Through Coolant |
| Coating Process | PVD |
| Insert Geometry | MTL |
