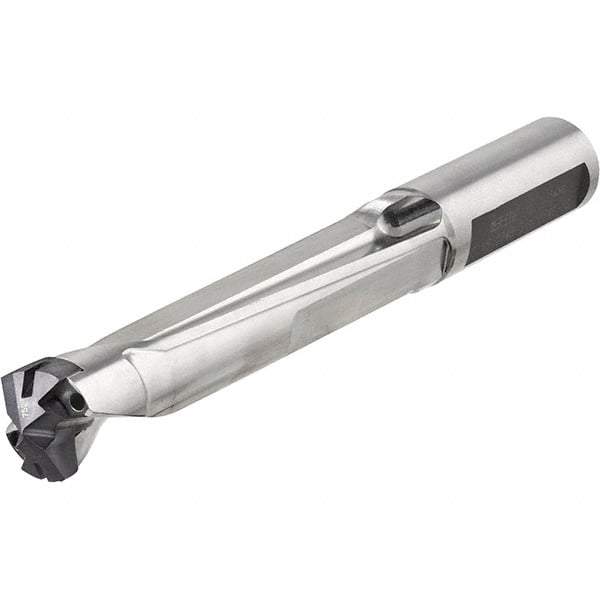

Iscar - 8mm to 8.41mm Diam, 5xD, 40mm Max Depth, 8mm Shank Diam, 92.46mm OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICP, iCP-2M Insert, 8 Seat Size, 91247783 Toolholder, Series UniSumoCham
Item #: 91247783
Brand: Iscar
Model #: 3203054
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | UniSumoCham |
| Minimum Drill Diameter (mm) | 8.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.3150 |
| Maximum Drill Diameter (mm) | 8.41 |
| Maximum Drill Diameter (Decimal Inch) | 0.3310 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 1.5700 |
| Maximum Drill Depth (mm) | 39.88 |
| Shank Diameter (mm) | 8.00 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICP; iCP-2M |
| Insert Seat Size | 8 |
| Toolholder Style | DCNS |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 56.39 |
| Body Length (Decimal Inch) | 2.2200 |
| Overall Length (mm) | 92.46 |
| Overall Length (Decimal Inch) | 3.6400 |
| Shank Length (mm) | 36.07 |
| Shank Length (Decimal Inch) | 1.4200 |
