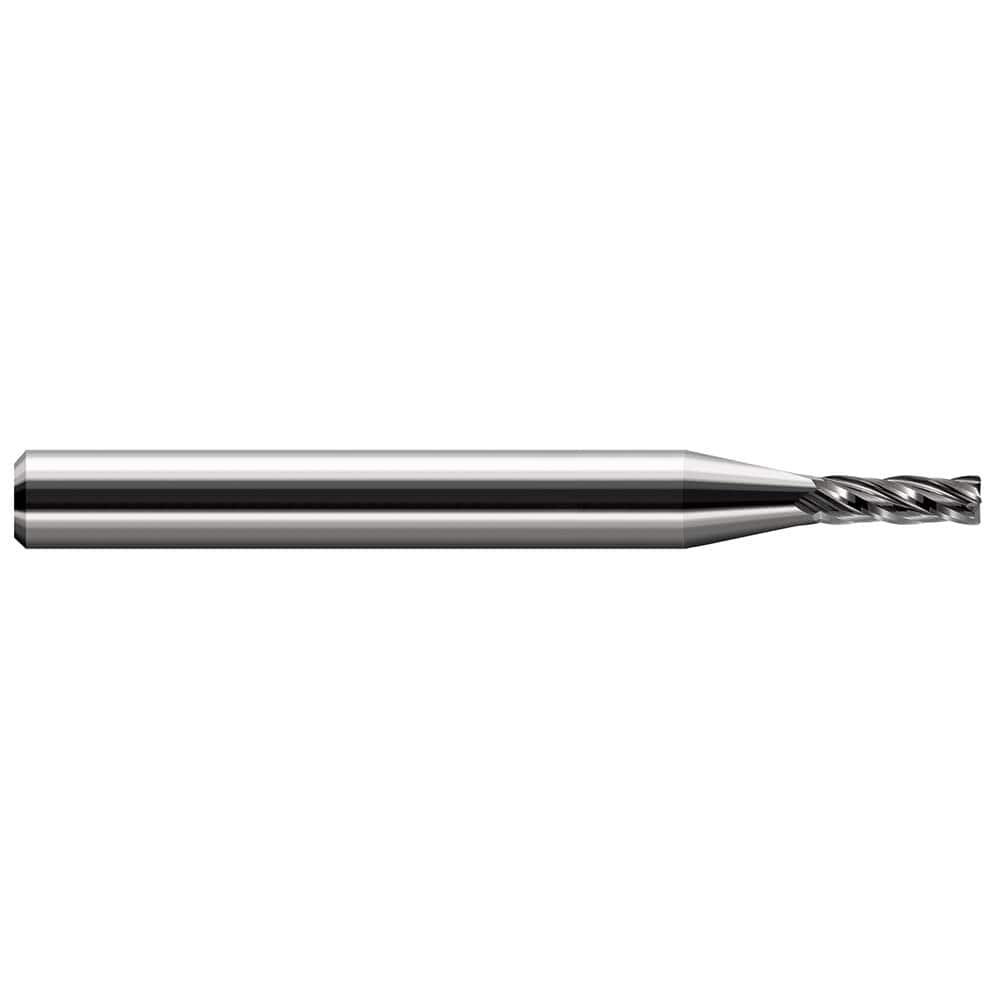

Harvey Tool - 5/32" Diam 4 Flute Solid Carbide 1/64" Corner Radius
Item #: 91243238
Brand: Harvey Tool
Model #: 75215
Product Specifications
| Mill Diameter (Inch) | 5/32 |
| Mill Diameter (Decimal Inch) | 0.1562 |
| End Type | Corner Radius |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0150 |
| Number of Flutes | 4 |
| Material | Solid Carbide |
| Finish/Coating | Uncoated |
| Length of Cut (Inch) | 9/16 |
| Length of Cut (Decimal Inch) | 0.5620 |
| Shank Diameter (Inch) | 3/16 |
| Overall Length (Inch) | 2 |
| Flute Type | Helical Flute |
| Cutting Direction | Right Hand |
| Helix Angle | 30 |
| Variable Helix | No |
| Single or Double End | Single |
| Centercutting | Center Cutting |
| Flute Direction | Right Hand |
| Series/List | Miniature End Mills - Corner Radius - Stub & Standard |
