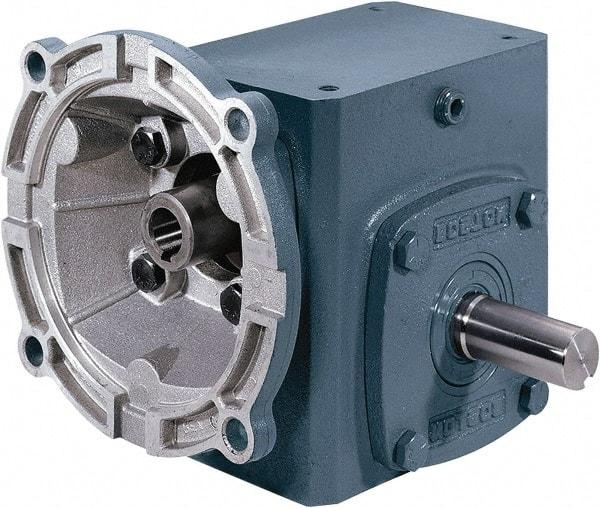

Boston Gear - 3-3/4 Centerline Distance, 60:1, 29 RPM Output, 2.24 Input Horsepower, 3,277 Lbs. Max Torque, Speed Reducer - Part No. F738-60-B7-J, Single Shaft Right, 7/8" Bore, 7.63" High, 140TC NEMA
Item #: 91230607
Brand: Boston Gear
Model #: 52109
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 3.750 |
| Ratio | 60:1 |
| NEMA Size | 140TC |
| PartNo | F738-60-B7-J |
| Shaft Style | Single Shaft Right |
| Bore Size (Decimal Inch) | 0.875 |
| Height (Inch) | 7.63 |
| Maximum Torque Inch/Lbs (Pounds) | 3277.00 |
| Maximum Input Horsepower | 2.24 |
| Output RPM at 1750 Input | 29.0 |
