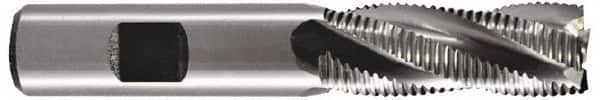

Hertel - 1" Diam, 2" LOC, 5 Flute Cobalt Roughing & Finishing Square End Mill - TiCN Finish, 4-1/4" OAL, 3/4" Shank Diam, Weldon Shank, 30° Helix, Centercutting
Item #: 91197483
Brand: Hertel
Exact Tooling IR#: 04
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Titanium carbonitride (TiCN) is harder and more wear resistant than TiN. It is commonly used on stainless steels, cast iron and aluminum alloys.
Center Cutting tools have one or more cutting edges at the tip and are used in a variety of applications including plunging, drilling or ramping.
| Product Specifications | |
|---|---|
| Mill Diameter (Inch) | 1 |
| Mill Diameter (Decimal Inch) | 1.0000 |
| End Type | Square |
| Number of Flutes | 5 |
| Material | Cobalt |
| Finish/Coating | TiCN |
| Length of Cut (Inch) | 2 |
| Length of Cut (Decimal Inch) | 2.0000 |
| Shank Diameter (Inch) | 3/4 |
| Overall Length (Inch) | 4-1/4 |
| Centercutting | Center Cutting |
| Extended Reach | NonExtendedReach |
| Shank Type | Weldon Shank |
| Helix Angle | 30 |
| Material Grade | M42 |
| Single or Double End | Single |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
