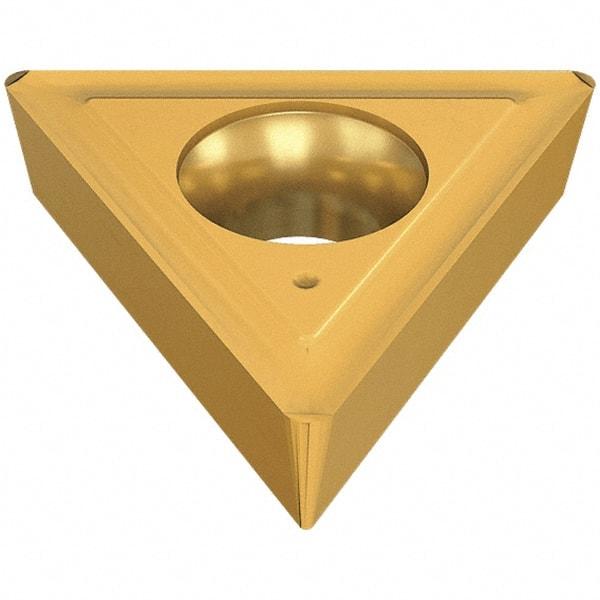

Iscar - TCMT3-2 19 Grade IC5005 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 60° Triangle, 3/8" Inscr Circle, 5/32" Thick, 1/32" Corner Radius
Item #: 91174060
Brand: Iscar
Model #: 5550451
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TCMT |
| Insert Size | 3-2 |
| Material | Carbide |
| Length (Decimal Inch) | 0.6500 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1560 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Manufacturer's Grade | IC5005 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | 19 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | CVD |
| Included Angle | 60 |
| Series | Isoturn |
| Maximum Depth of Cut (Decimal Inch) | 0.1570 |
| Insert Holding Method | Screw |
| Shape | Triangle |
