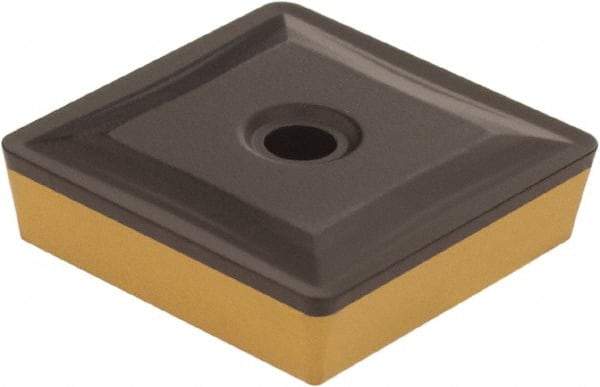

Iscar - SPMR422 Grade IC8250 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 90° Square, 1/2" Inscr Circle, 1/8" Thick, 1/32" Corner Radius
Item #: 91170456
Brand: Iscar
Model #: 5507932
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SPMR |
| Insert Size | 422 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | IC8250 |
| Coating | TiCN/Al2O3/TiN |
| Rake | Positive |
| Relief Angle | 11 |
| Coating Process | PVD |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | M |
| Included Angle | 90 |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Insert Holding Method | Clamp |
| Shape | Square |
