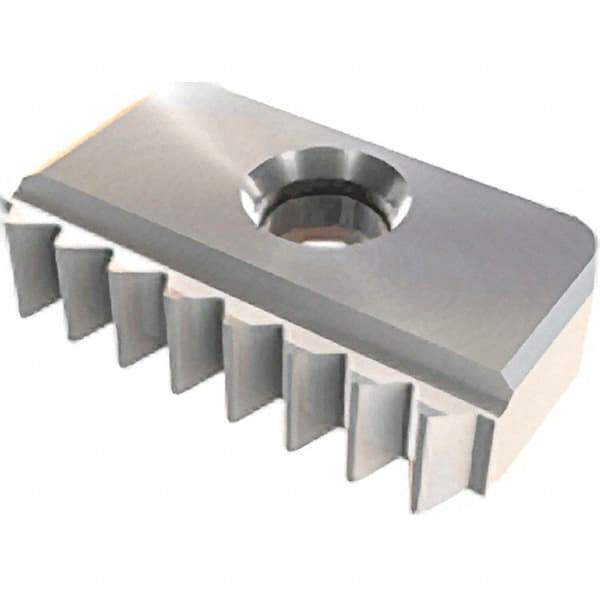

Iscar - 3mm Pitch, External Thread, ISO Standard, MT21 IC908 Grade Thread Mill Insert - Carbide, TiAlN Coating
Item #: 91163923
Brand: Iscar
Model #: 5607031
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Insert Style | MT21 |
| Thread Type | External |
| Thread Standard | ISO |
| Pitch (mm) | 3.00 |
| Length (mm) | 21.00 |
| Length (Decimal Inch) | 0.8268 |
| Manufacturer's Grade | IC908 |
| Material | Carbide |
| Coating | TiAlN |
| Coating Process | PVD |
| Thickness (mm) | 4.80 |
| Thickness (Decimal Inch) | 0.1890 |
| Width (Decimal Inch) | 0.5040 |
| Width (mm) | 12.80 |
| Conical | No |
