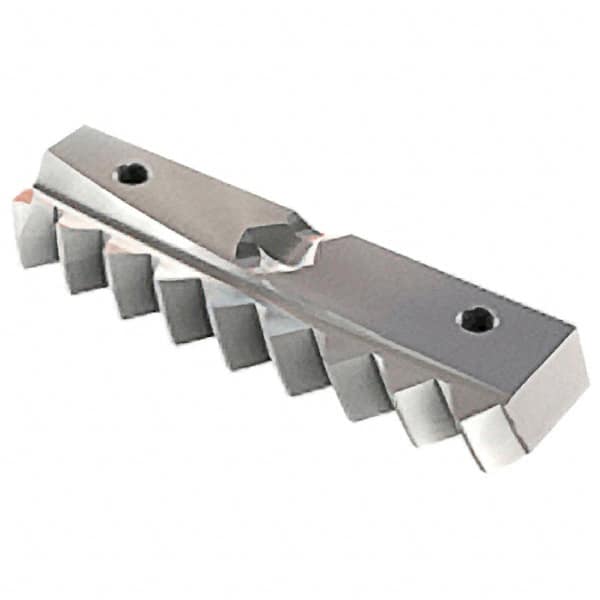

Iscar - 11.5 TPI, Internal/External Thread, NPT Standard, MTH IC908 Grade Thread Mill Insert - Carbide, TiAlN Coating
Item #: 91162859
Brand: Iscar
Model #: 5607191
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Insert Style | MTH |
| Thread Type | Internal/External |
| Thread Standard | NPT |
| Threads Per Inch | 11.5 |
| Length (mm) | 37.00 |
| Length (Decimal Inch) | 1.4567 |
| Manufacturer's Grade | IC908 |
| Material | Carbide |
| Coating | TiAlN |
| Coating Process | PVD |
| Thickness (mm) | 5.00 |
| Thickness (Decimal Inch) | 0.1970 |
| Width (Decimal Inch) | 0.4685 |
| Width (mm) | 11.90 |
| Conical | Yes |
