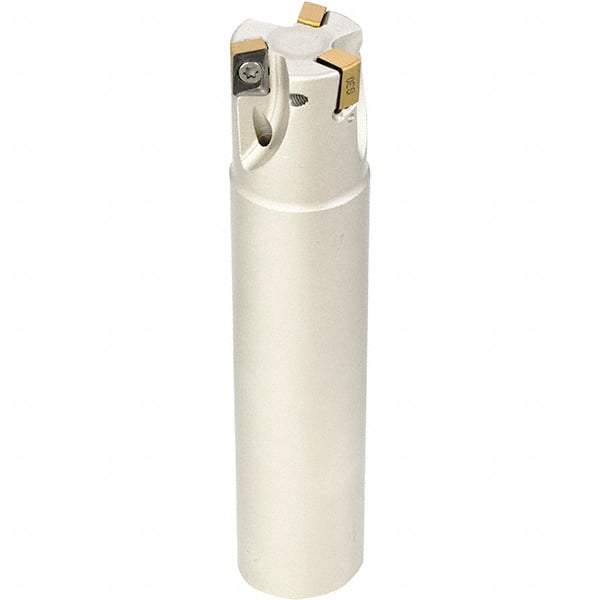

Iscar - 16mm Cut Diam, 8mm Max Depth of Cut, 16mm Shank Diam, 90mm OAL, Indexable Square Shoulder Helical End Mill - H490 ANKX 09.. Inserts, Cylindrical Shank, 90° Lead Angle, Through Coolant, Series Helido
Item #: 91148940
Brand: Iscar
Model #: 3105268
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 16.00 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 16.00 |
| Overall Length/Projection (mm) | 90.00 |
| Lead Angle | 90 |
| Series | Helido |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 8.00 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | H490 E90AX-09 |
| Number of Flutes | 2 |
| Head Length (mm) | 26.00 |
| Weldon Flat | No |
| Insert Compatibility | H490 ANKX 09.. |
| Shank Length (mm) | 64.00 |
