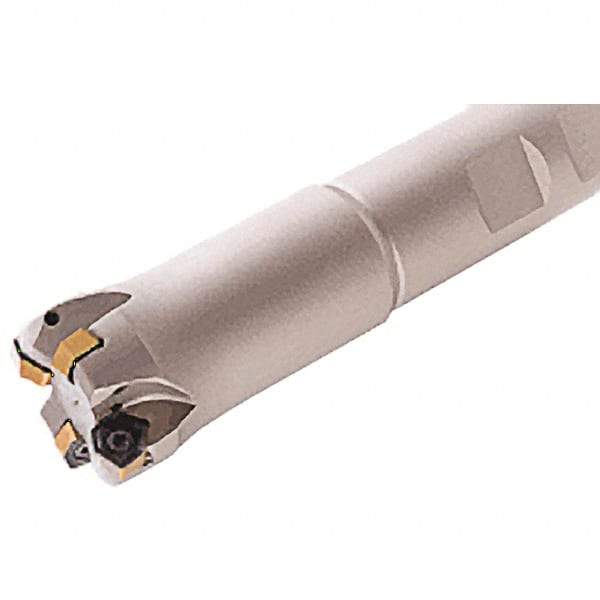

Iscar - 32mm Cut Diam, 0.039" Max Depth, 32mm Shank Diam, Weldon Shank Indexable High-Feed End Mill - Screw Holding Method, H600 WXCU 05 Insert, FF EWX-05 Toolholder, Through Coolant
Item #: 91146183
Brand: Iscar
Model #: 3105532
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0390 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2600 |
| Number of Cutter Inserts | 4 |
| Insert Style | H600 WXCU 05 |
| Toolholder Style | FF EWX-05 |
| Insert Holding Method | Screw |
| Weldon Flat | Yes |
| End Mill Type | End Mill |
| Number of Flutes | 4 |
| Minimum Cutting Diameter (Decimal Inch) | 0.8660 |
| Through Coolant | Through Coolant |
| Maximum Cutting Diameter (Decimal Inch) | 1.2600 |
| Overall Length (Decimal Inch) | 8.4650 |
