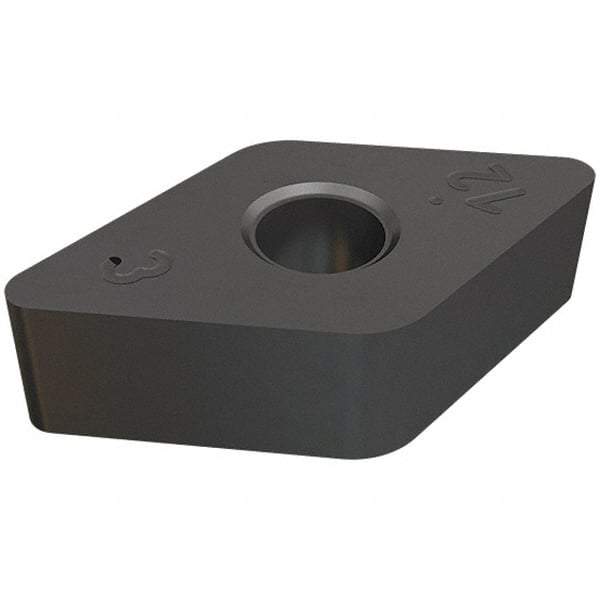

Iscar - DNMA442 Grade IC5010 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 55° Diamond, 1/2" Inscr Circle, 1/4" Thick, 1/32" Corner Radius
Item #: 91143297
Brand: Iscar
Model #: 5508083
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DNMA |
| Insert Size | 442 |
| Material | Carbide |
| Length (mm) | 15.50 |
| Length (Decimal Inch) | 0.6102 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | IC5010 |
| Coating | TiCN/Al2O3/TiN |
| Relief Angle | 0 |
| Coating Process | CVD |
| Included Angle | 55 |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
