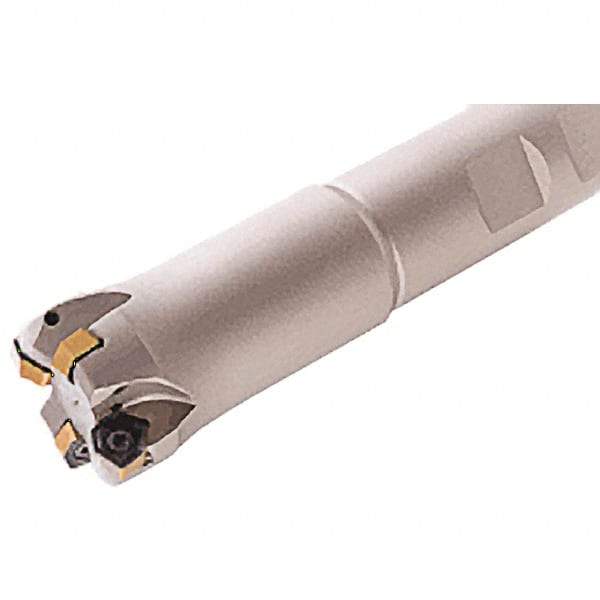

Iscar - 16mm Cut Diam, 0.031" Max Depth, 20mm Shank Diam, Weldon Shank Indexable High-Feed End Mill - Screw Holding Method, H600 WXCU 04 Insert, FF EWX-04 Toolholder, Through Coolant
Item #: 91133728
Brand: Iscar
Model #: 3105613
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 16.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0310 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7870 |
| Number of Cutter Inserts | 2 |
| Insert Style | H600 WXCU 04 |
| Toolholder Style | FF EWX-04 |
| Insert Holding Method | Screw |
| Weldon Flat | Yes |
| End Mill Type | End Mill |
| Number of Flutes | 2 |
| Minimum Cutting Diameter (Decimal Inch) | 0.3390 |
| Through Coolant | Through Coolant |
| Maximum Cutting Diameter (Decimal Inch) | 0.6300 |
| Overall Length (Decimal Inch) | 4.2910 |
