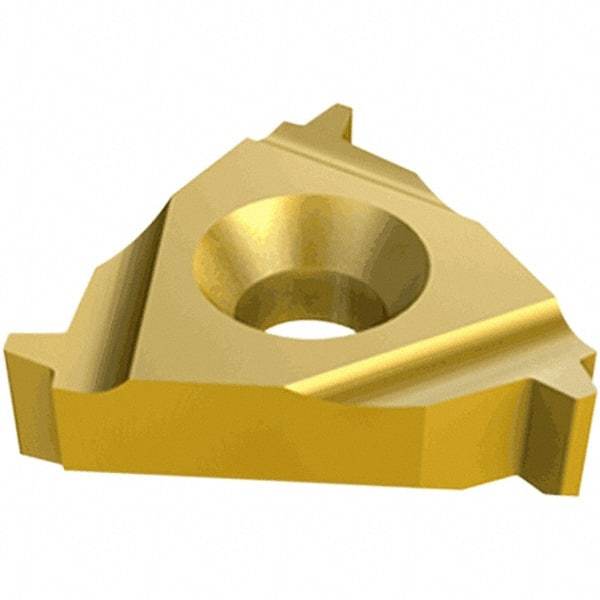

Iscar - 16ERM External Right Hand ISO Laydown Threading Insert - Grade IC808, TiAlN Coated Carbide, 9.53mm Inscribed Circle
Item #: 91127324
Brand: Iscar
Model #: 5903359
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 16ERM |
| Insert Hand | Right Hand |
| Thread Type | External |
| Thread Standard | ISO |
| Manufacturer's Grade | IC808 |
| Pitch (mm) | 1.75 |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (Decimal Inch) | 0.1430 |
| Coating | TiAlN |
| Coating Process | PVD |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Chipbreaker | M |
