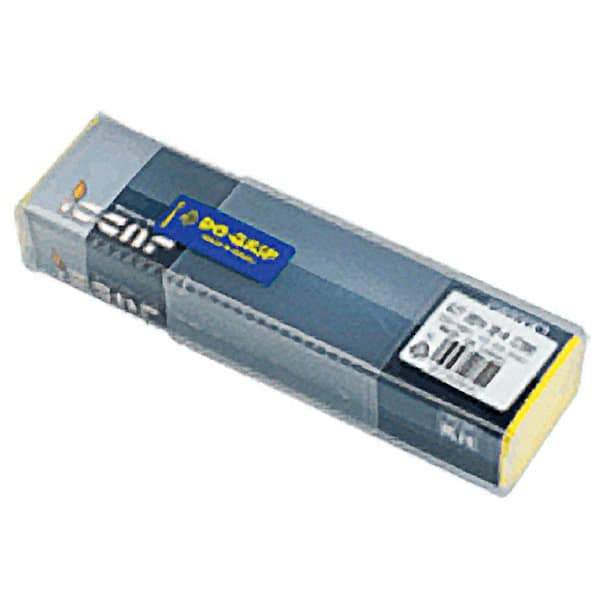

Iscar - DGN, DGNC and DGNM Insert Style, DGFH Blade Style, IC808 Grade, 0.157 Inch Largest Insert Width, 0.157 Inch Smallest Insert Width, Indexable Cutoff Kit - Includes 10 Inserts
Item #: 91124883
Brand: Iscar
Model #: 2302291
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Insert Width - Largest Insert (Decimal Inch) | 0.1570 |
| Insert Width - Smallest Insert (Decimal Inch) | 0.1570 |
| Insert Style | DGN; DGNC; DGNM |
| Manufacturer's Grade | IC808 |
| Blade Style | DGFH |
| Tool Block/Toolholder Style | DGFH |
| Number of Blades Included in Order | 1 |
| Number of Inserts Included in Order | 10 |
| Number of Toolholders Included in Order | 0 |
| Number of Pieces Included in Order | 11 |
| Blade Height (Decimal Inch) | 1.2600 |
| Blade Overall Length (Decimal Inch) | 5.9060 |
| Insert Seat Size | 3.2 |
| Insert Width (Decimal Inch) | 0.1570 |
| Cutting Height (Decimal Inch) | 0.9760 |
| Through Coolant | Through Coolant |
| Insert Holding Method | Clamp |
| Complete Blade Compatibility | DGFH 32-4 |
