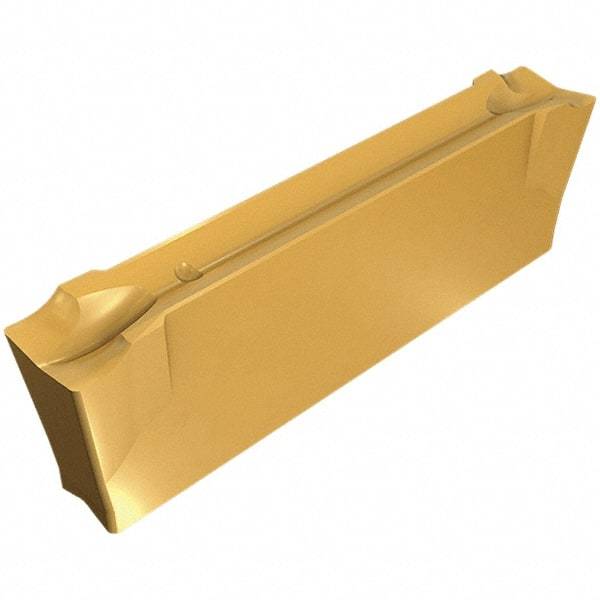

Iscar - DGN JT IC808 Grade, 0.0866" Cutting Width, Carbide Cutoff Insert - Neutral Lead Angle, 0.008" Cnr Rad, TiAlN Coated, Double End
Item #: 91124289
Brand: Iscar
Model #: 6003682
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | DGN |
| Lead Angle Direction | Neutral |
| Cutting Width (mm) | 2.20 |
| Cutting Width (Decimal Inch) | 0.0866 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN |
| Series | Do-Grip |
| Relief Angle | 7 |
| Chipbreaker | JT |
| Maximum Depth of Cut (mm) | 18.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7087 |
| Coating Process | PVD |
| Overall Length (mm) | 19.80 |
| Overall Length (Decimal Inch) | 0.7795 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Corner Radius (mm) | 0.20 |
| Insert Holding Method | Clamp |
