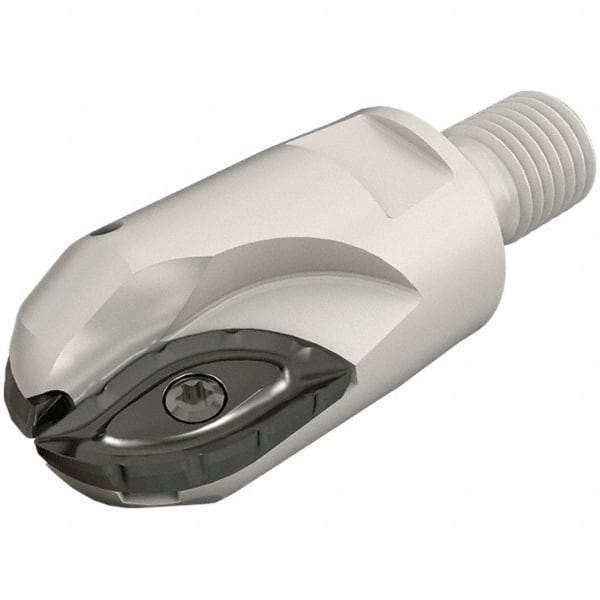

Iscar - 32mm Cut Diam, 26mm Max Depth of Cut, 78mm OAL, Indexable Ball Nose End Mill - 53mm Head Length, M16 Modular Connection, BCM-M Toolholder, BCR D320 Insert
Item #: 91123166
Brand: Iscar
Model #: 3104663
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Maximum Depth of Cut (mm) | 26.00 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | M16 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | BCR D320 |
| Toolholder Style | BCM-M |
| Series | DropMill; FlexFit |
| Overall Length (mm) | 78.00 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Number of Flutes | 2 |
| Head Length (mm) | 53.00 |
| Neck Diameter (Decimal Inch) | 0.7480 |
