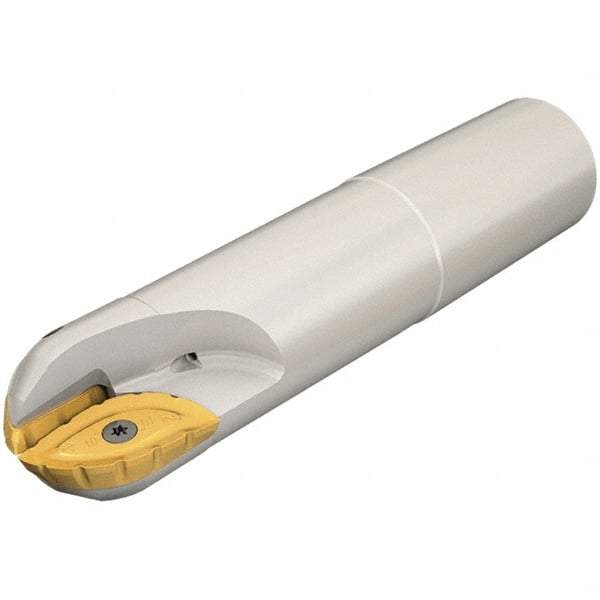

Iscar - 2" Cut Diam, 1.72" Max Depth of Cut, 2" Shank Diam, 8.45" OAL, Indexable Ball Nose End Mill - 5.2" Head Length, Straight Shank, BCM Toolholder, BCR... Insert
Item #: 91123158
Brand: Iscar
Model #: 3104937
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 2 |
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Depth of Cut (Decimal Inch) | 1.7200 |
| Shank Type | Straight Shank |
| Shank Diameter (Decimal Inch) | 2.0000 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | BCR... |
| Toolholder Style | BCM |
| Series | DropMill |
| Overall Length (Decimal Inch) | 8.4500 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Weldon Flat | Yes |
| Tapered Neck | No |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 5.2000 |
