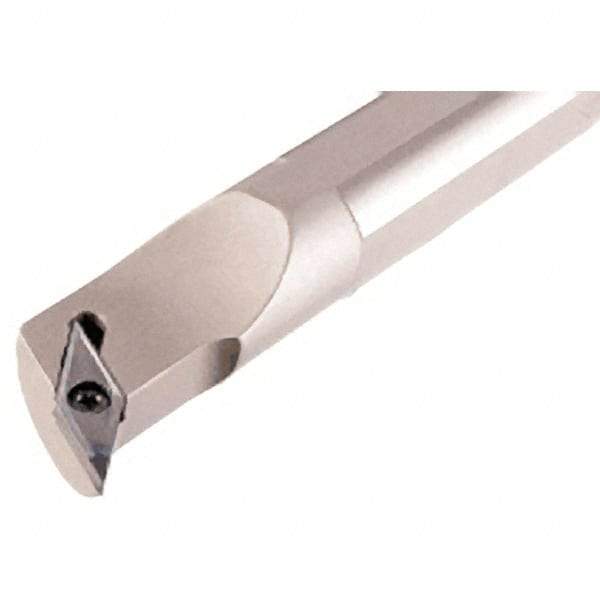

Iscar - 47.5mm Min Bore Diam, 350mm OAL, 40mm Shank Diam, A-SVQC Indexable Boring Bar - 64mm Max Bore Depth, VCGT 2205.. Insert, Screw Holding Method
Item #: 91112151
Brand: Iscar
Model #: 3602649
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-SVQC |
| Series | Isoturn |
| Minimum Bore Diameter (mm) | 47.50 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (mm) | 64.00 |
| Overall Length (mm) | 350.00 |
| Shank Diameter (mm) | 40.00 |
| Insert Compatibility | VCGT 2205.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Negative |
| Center to Cutting Edge (mm) | 27.00 |
| Insert Thickness (Decimal Inch) | 0.2200 |
| Insert Inscribed Circle (mm) | 12.70 |
| Rake Angle | -8 |
| Complete Insert Compatibility | VCGT 220508-AF; VCGT 220512-AF; VCGT 220516-AF; VCGT 220516-DW; VCGT 220530-AS |
| Toolholder Material | Steel |
