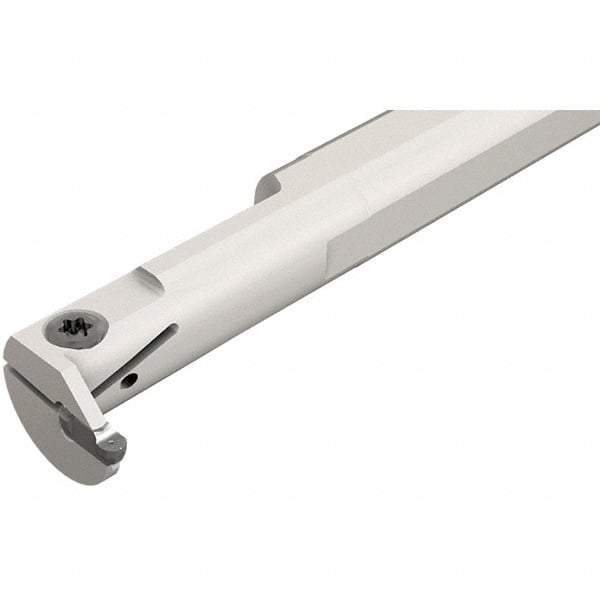

Iscar - 0.787" Min Bore Diam, 6" OAL, 5/8" Shank Diam, GEHI Indexable Boring Bar - 0.315" Max Bore Depth, GEPI Insert, Clamp Holding Method
Item #: 91111898
Brand: Iscar
Model #: 2801783
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | GEHI |
| Series | Cut Grip |
| Minimum Bore Diameter (Decimal Inch) | 0.7870 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (Decimal Inch) | 0.3150 |
| Overall Length (Decimal Inch) | 6.0000 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Compatibility | GEPI |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Center to Cutting Edge (Decimal Inch) | 0.6400 |
| Coolant Hole Diameter (mm) | 6.00 |
| Complete Insert Compatibility | GEPI 1.96-0.15; GEPI 1.96-0.10; GEPI 2.00-1.00; GEPI 2.00-0.10; GEPI 2.22-0.15; GEPI 2.22-0.10 |
| Toolholder Material | Steel |
