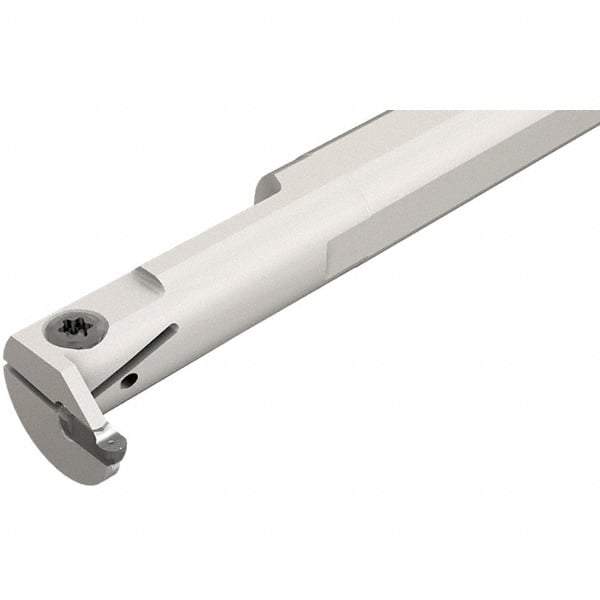

Iscar - 0.551" Min Bore Diam, 6" OAL, 1/2" Shank Diam, GEHI Indexable Boring Bar - 0.157" Max Bore Depth, GE.I Insert, Clamp Holding Method
Item #: 91111872
Brand: Iscar
Model #: 2801786
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | GEHI |
| Series | Cut Grip |
| Minimum Bore Diameter (Decimal Inch) | 0.5510 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (Decimal Inch) | 0.1570 |
| Overall Length (Decimal Inch) | 6.0000 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Insert Compatibility | GE.I |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Center to Cutting Edge (Decimal Inch) | 0.4100 |
| Coolant Hole Diameter (Decimal Inch) | 0.1570 |
| Complete Insert Compatibility | GEMI 3002M; GEPI 2.47-0.20; GEPI 2.5-MT0.05; GEPI 2.5-WT0.05; GEPI 2.50-0.20; GEPI 2.50-0.10; GEPI 2.70-0.20; GEPI 3.00-1.50; GEPI 3.00-0.20; GEPI 3.18-1.59 |
| Toolholder Material | Steel |
