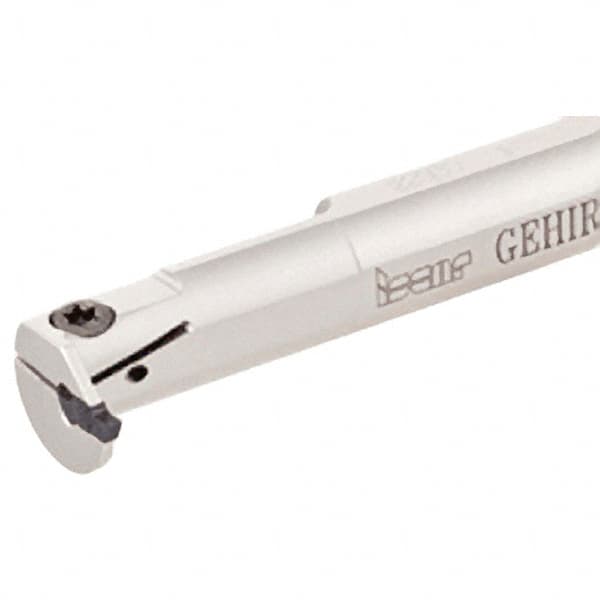

Iscar - 15mm Min Bore Diam, 150mm OAL, 12mm Shank Diam, GEHI Indexable Boring Bar - 6mm Max Bore Depth, GEPI Insert, Clamp Holding Method
Item #: 91111815
Brand: Iscar
Model #: 2801899
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | GEHI |
| Series | Cut Grip |
| Minimum Bore Diameter (mm) | 15.00 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (mm) | 6.00 |
| Overall Length (mm) | 150.00 |
| Shank Diameter (mm) | 12.00 |
| Insert Compatibility | GEPI |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Center to Cutting Edge (mm) | 12.30 |
| Coolant Hole Diameter (mm) | 6.00 |
| Complete Insert Compatibility | GEPI 1.96-0.15; GEPI 1.96-0.10; GEPI 2.00-1.00; GEPI 2.00-0.10; GEPI 2.22-0.15; GEPI 2.22-0.10 |
| Toolholder Material | Steel |
