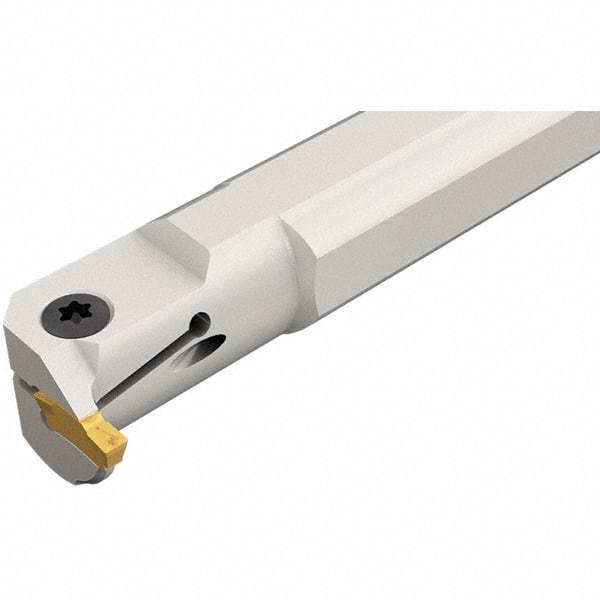

Iscar - 57mm Min Bore Diam, 300mm OAL, 40mm Shank Diam, TGI Indexable Boring Bar - 17.5mm Max Bore Depth, TGM.. Insert, Clamp Holding Method
Item #: 91111708
Brand: Iscar
Model #: 2850056
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | TGI |
| Series | Top Grip |
| Minimum Bore Diameter (mm) | 57.00 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 17.50 |
| Overall Length (mm) | 300.00 |
| Shank Diameter (mm) | 40.00 |
| Insert Compatibility | TGM.. |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Turning |
| Insert Holding Method | Clamp |
| Center to Cutting Edge (mm) | 35.20 |
| Complete Insert Compatibility | TGMF 402; TGMF 404; TGMF 420; TGMF 508; TGMF 525; TGMP 506 |
| Toolholder Material | Steel |
