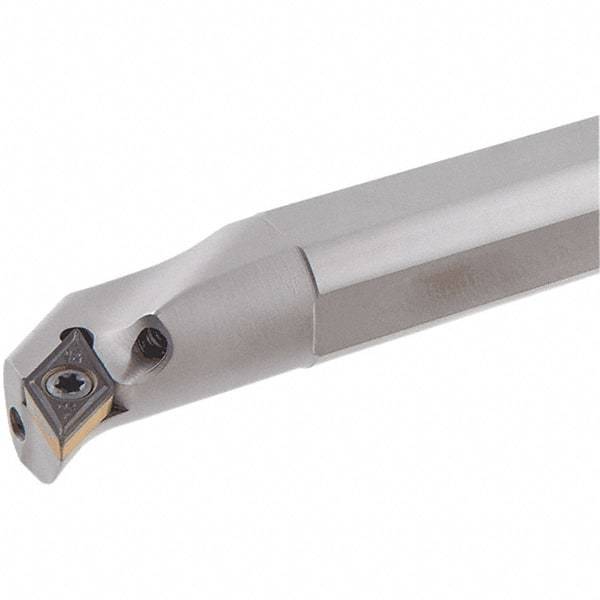

Iscar - 25mm Min Bore Diam, 200mm OAL, 20mm Shank Diam, S-SDUC Indexable Boring Bar - 50mm Max Bore Depth, DC.. 0702.. Insert, Screw Holding Method
Item #: 91111633
Brand: Iscar
Model #: 3600912
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-SDUC |
| Series | Isoturn |
| Minimum Bore Diameter (mm) | 25.00 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (mm) | 50.00 |
| Overall Length (mm) | 200.00 |
| Shank Diameter (mm) | 20.00 |
| Insert Compatibility | DC.. 0702.. |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Negative |
| Center to Cutting Edge (mm) | 13.00 |
| Insert Inscribed Circle (mm) | 6.35 |
| Rake Angle | -6 |
| Complete Insert Compatibility | DC..07.. |
| Toolholder Material | Steel |
